Scan Tool Will Not Communicate: Notes

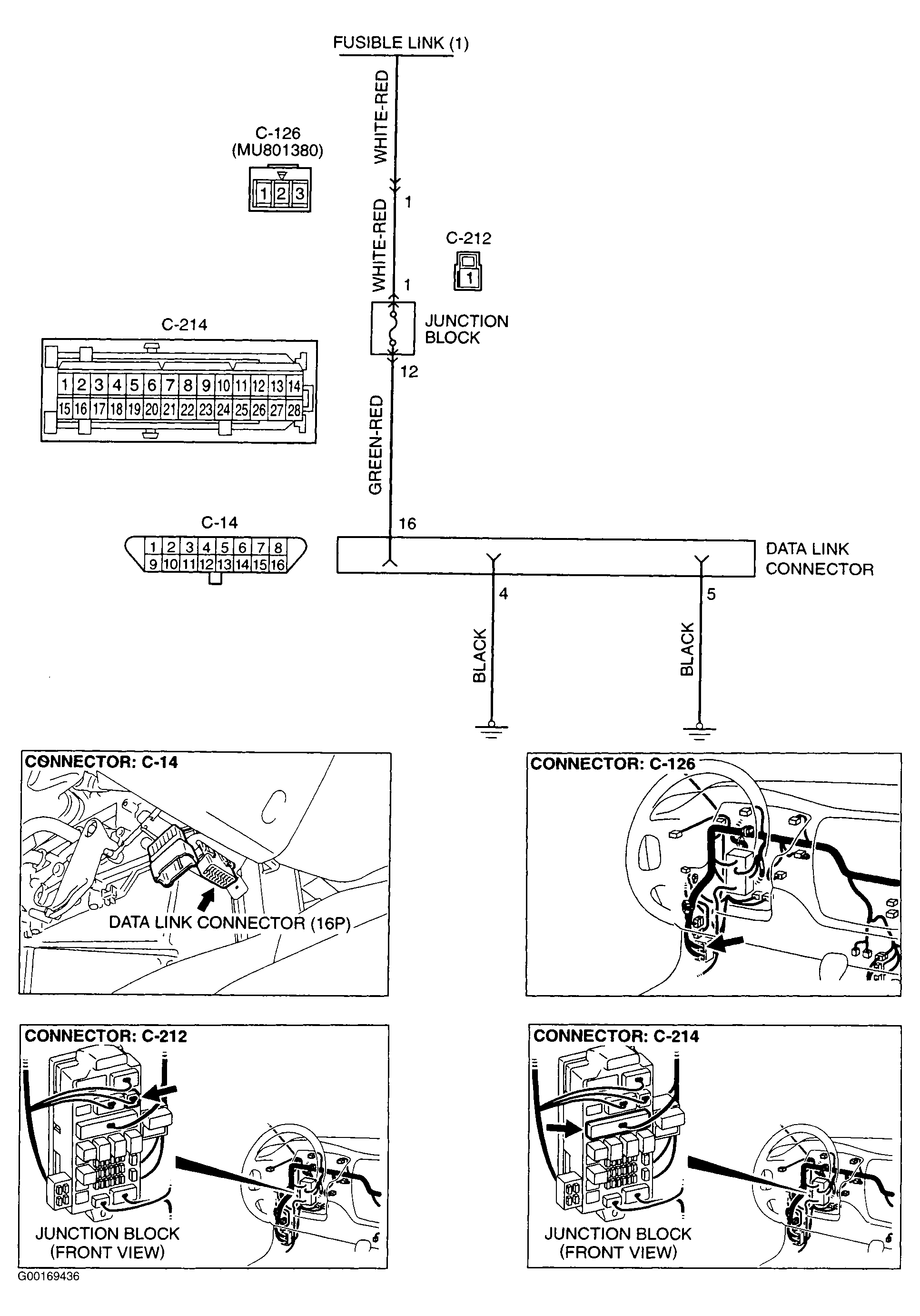

Fig 1: Identifying DLC Circuit, Component & Connector Location (1 Of 2)
G00169436Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

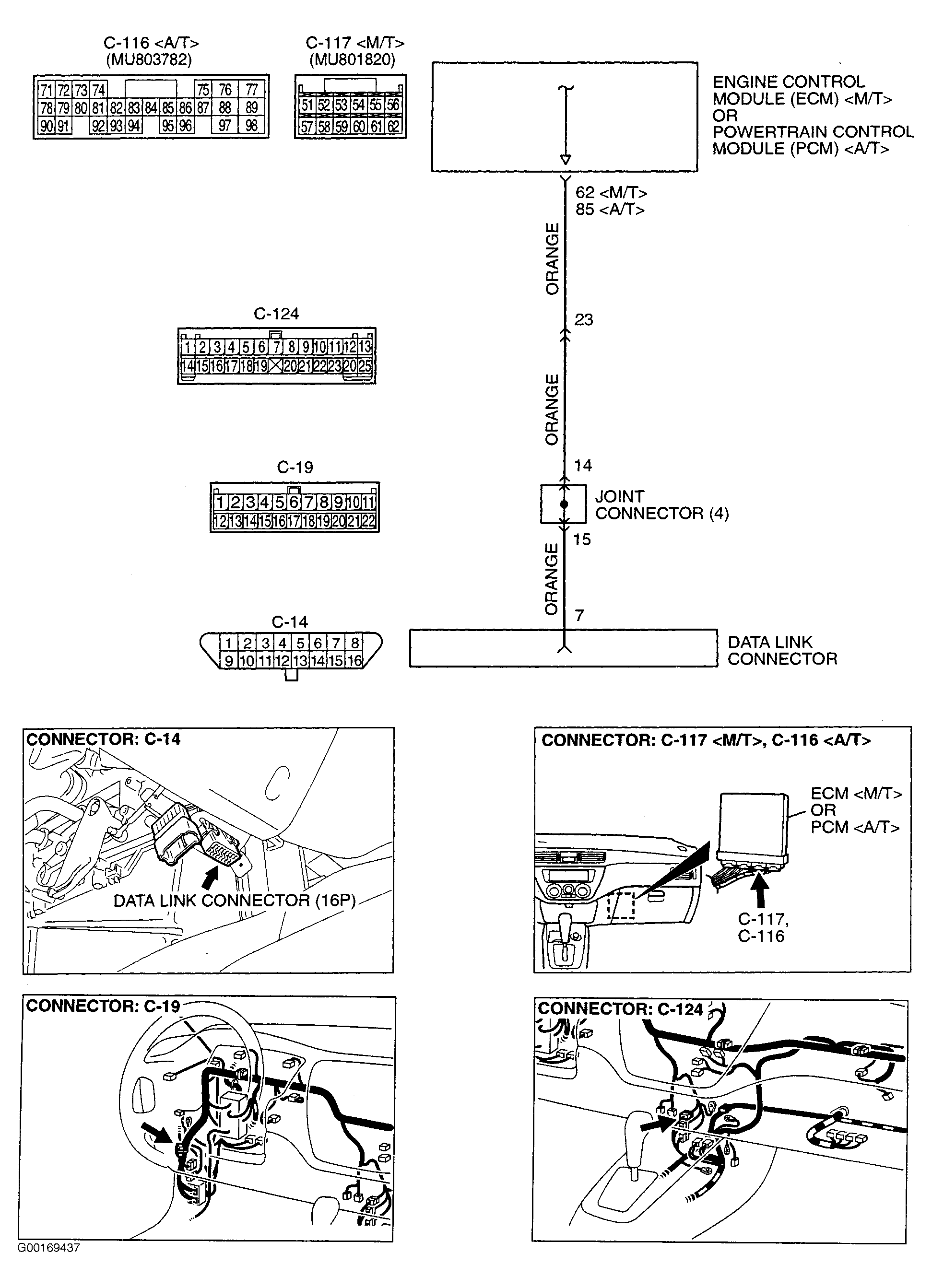

Fig 2: Identifying DLC Circuit, Component & Connector Location (2 Of 2)
G00169437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
