DTC P0181: Fuel Temperature Sensor Circuit Range/Performance Problem: Notes

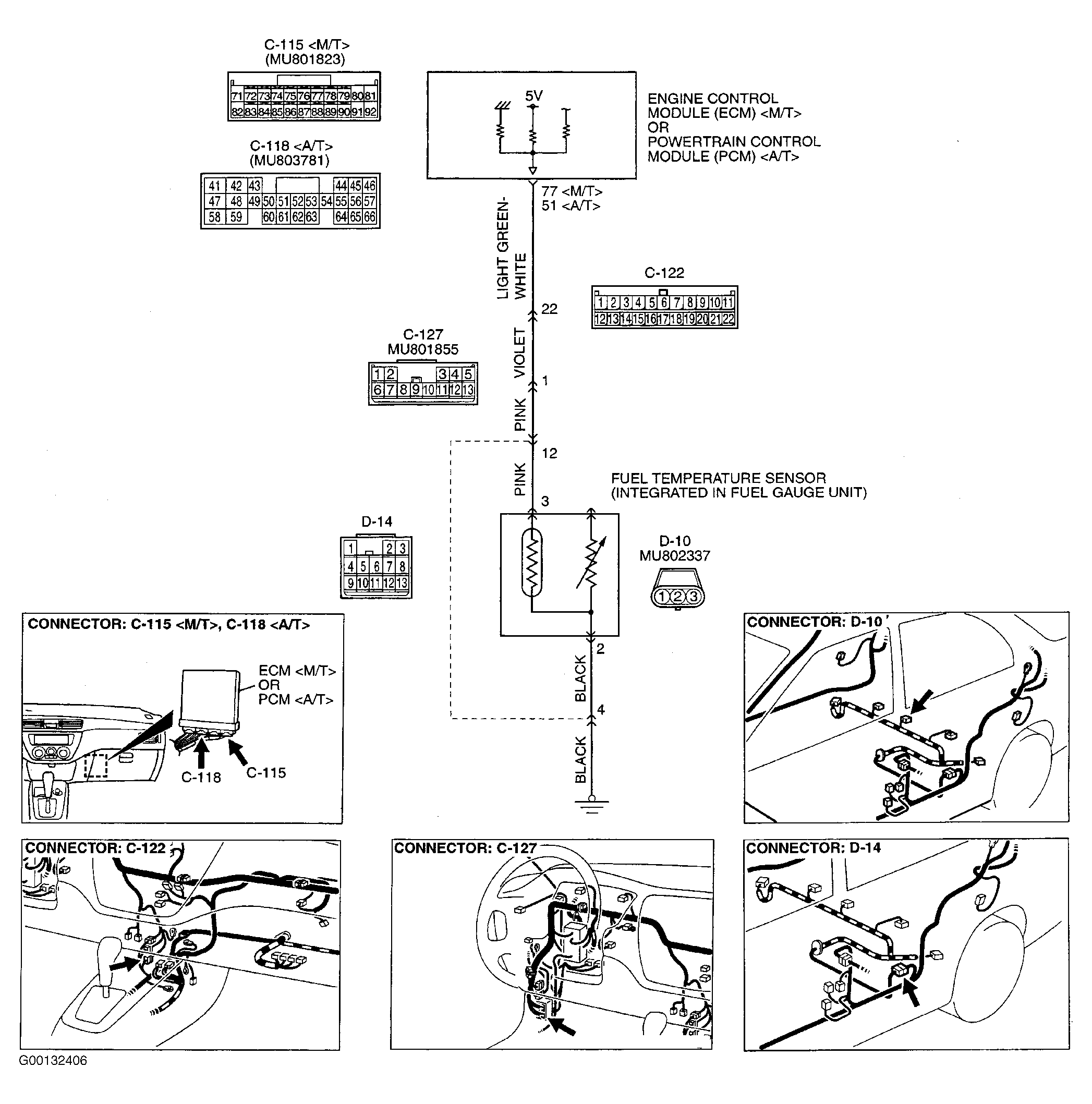

Fig 1: Identifying Fuel Temperature Sensor Circuit, Component & Connector Location
G00132406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
