Removal And Installation <2.4L Engine>

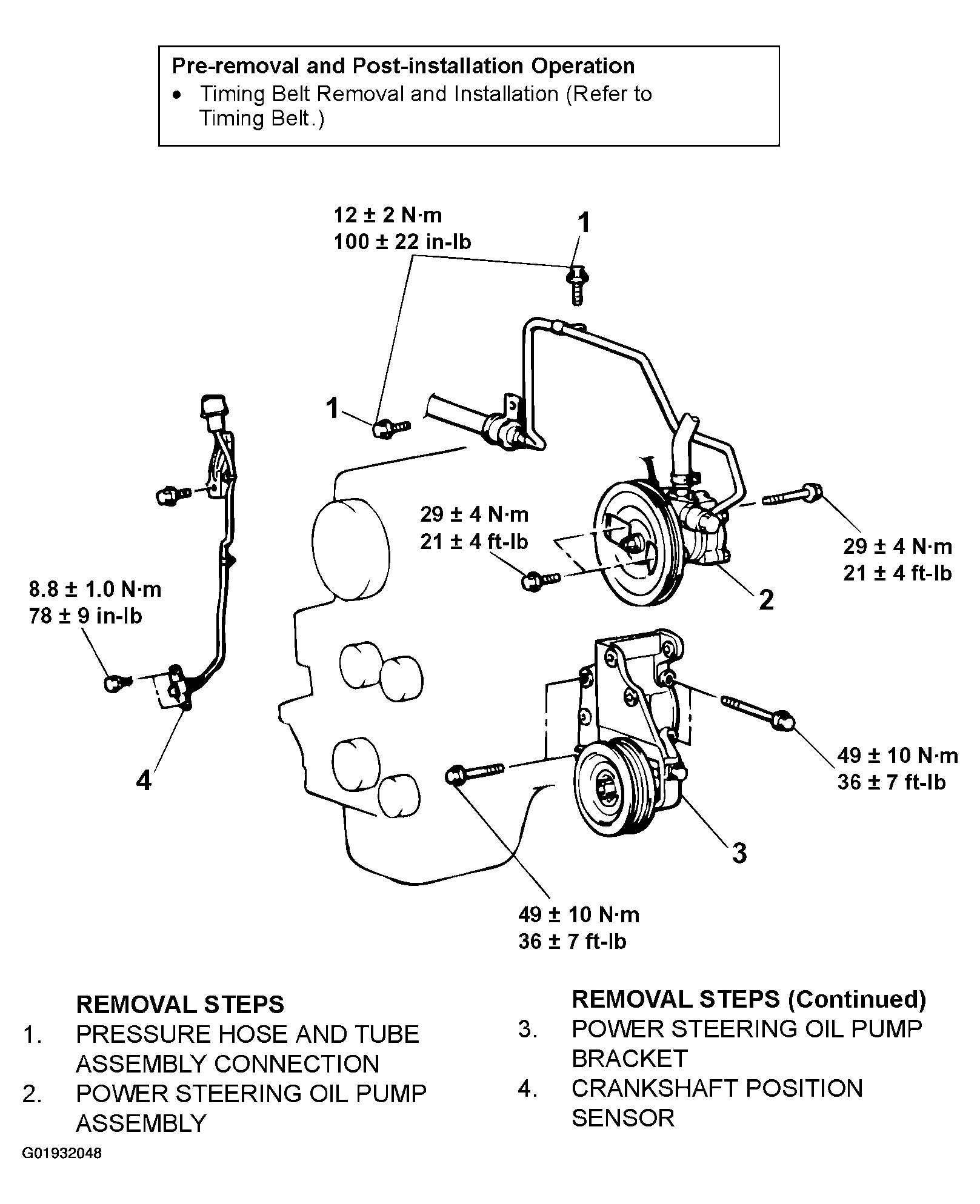

Fig 1: Removing Crankshaft Position Sensor And Torque Specifications - 2.4L Engine
G01932048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
