Removal And Installation <3.0L Engine>

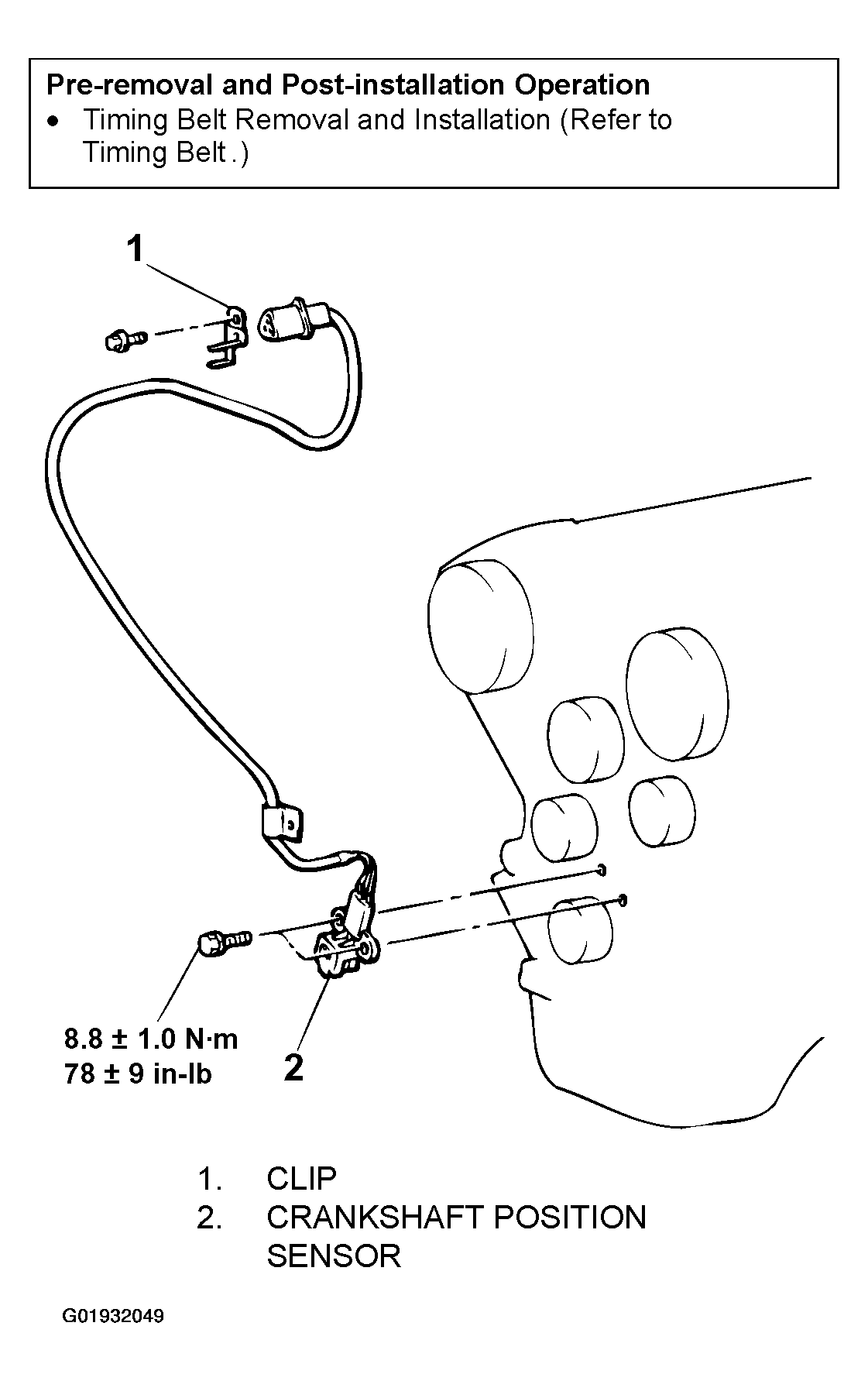

Fig 1: Removing Crankshaft Position Sensor And Torque Specifications - 3.0L Engine
G01932049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
