Component Testing: Brush

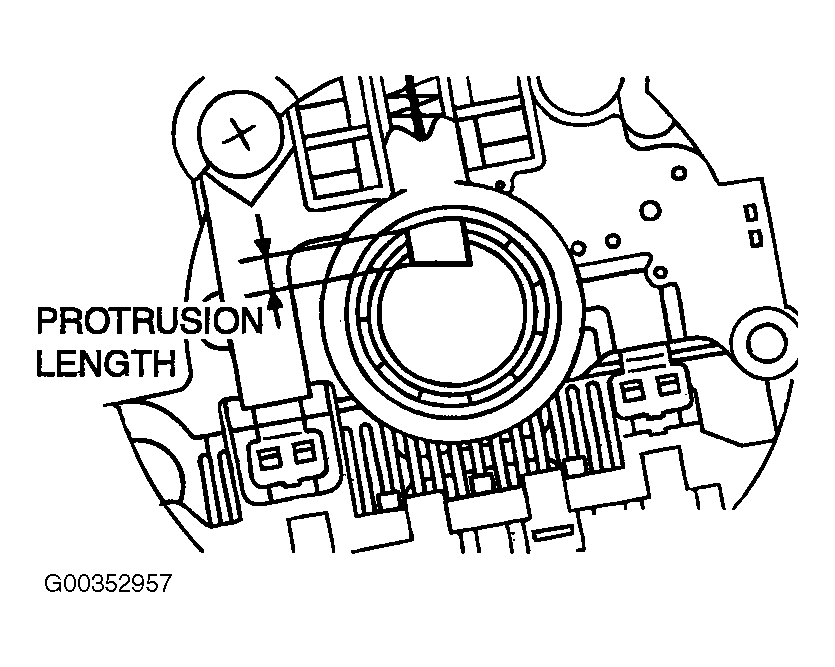

- Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit of 2 mm. See Fig 1
.

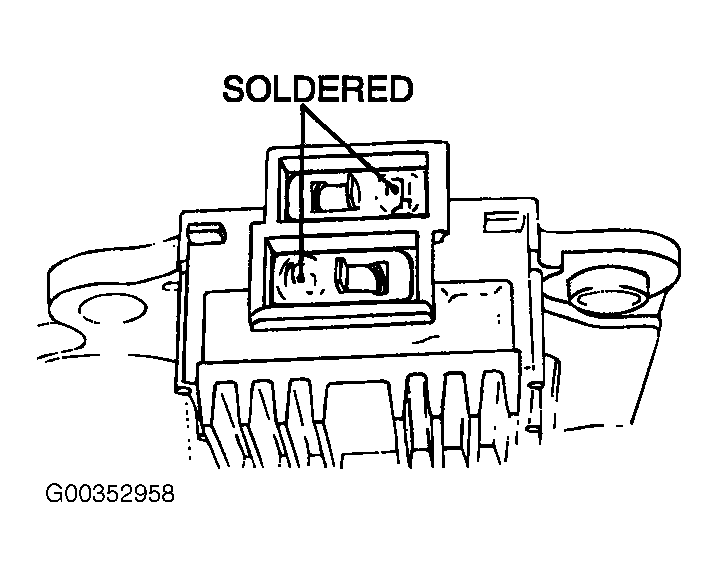

- Unsolder the lead of the brush. The brush will come out, ready for removal.
- Install a new brush by pushing it into the holder. See Fig 2
.
