Generators & Regulators - Evolution: Overhaul: Generator: Notes

For disassembly procedures, see Fig 1 .

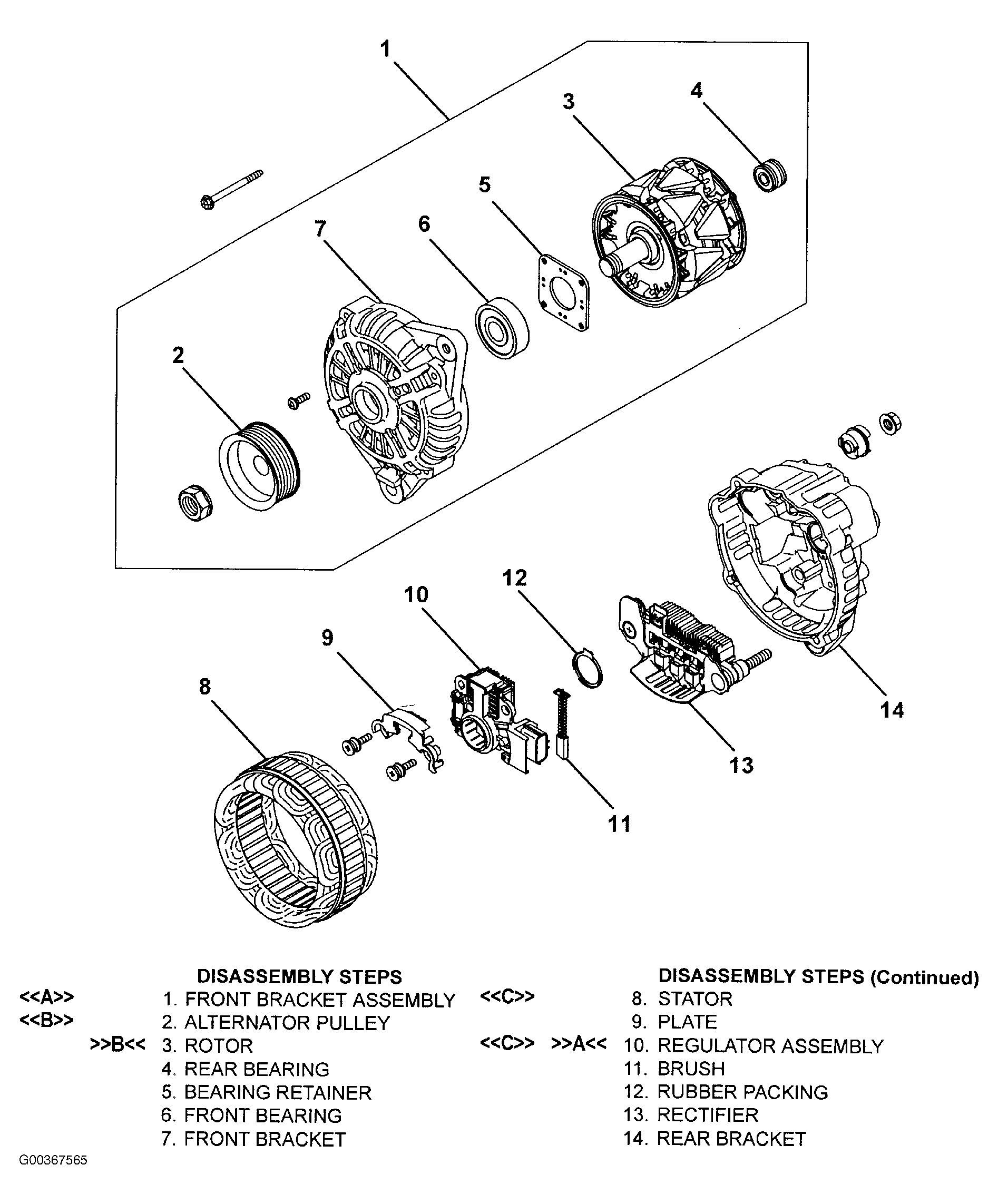

Fig 1: Exploded View Of Disassembly & Assembly Procedures

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
