Coil Open Circuit Test

Check that there is continuity between the "M" terminal and body "A". See Fig 1 . If there is no continuity, replace the magnetic switch.

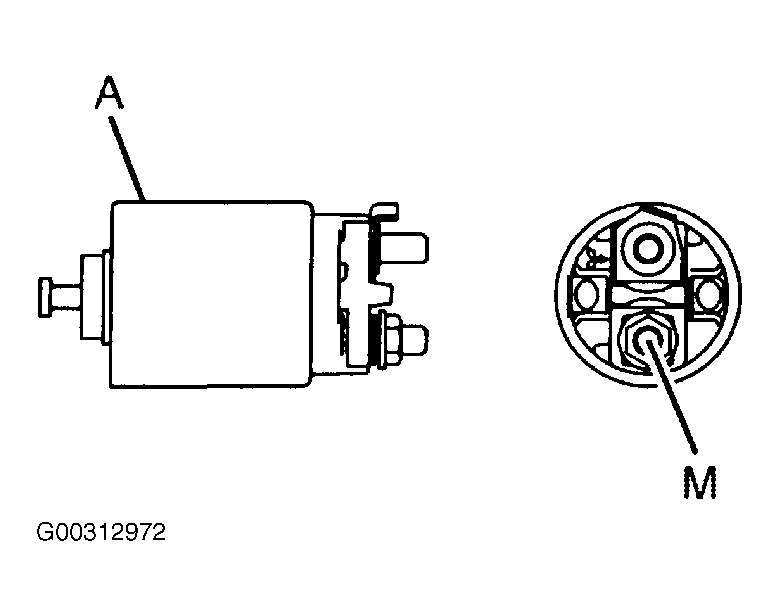

Fig 1: Testing Coil Open Circuit Test

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
