Starter Relay Check
For starter relay testing see

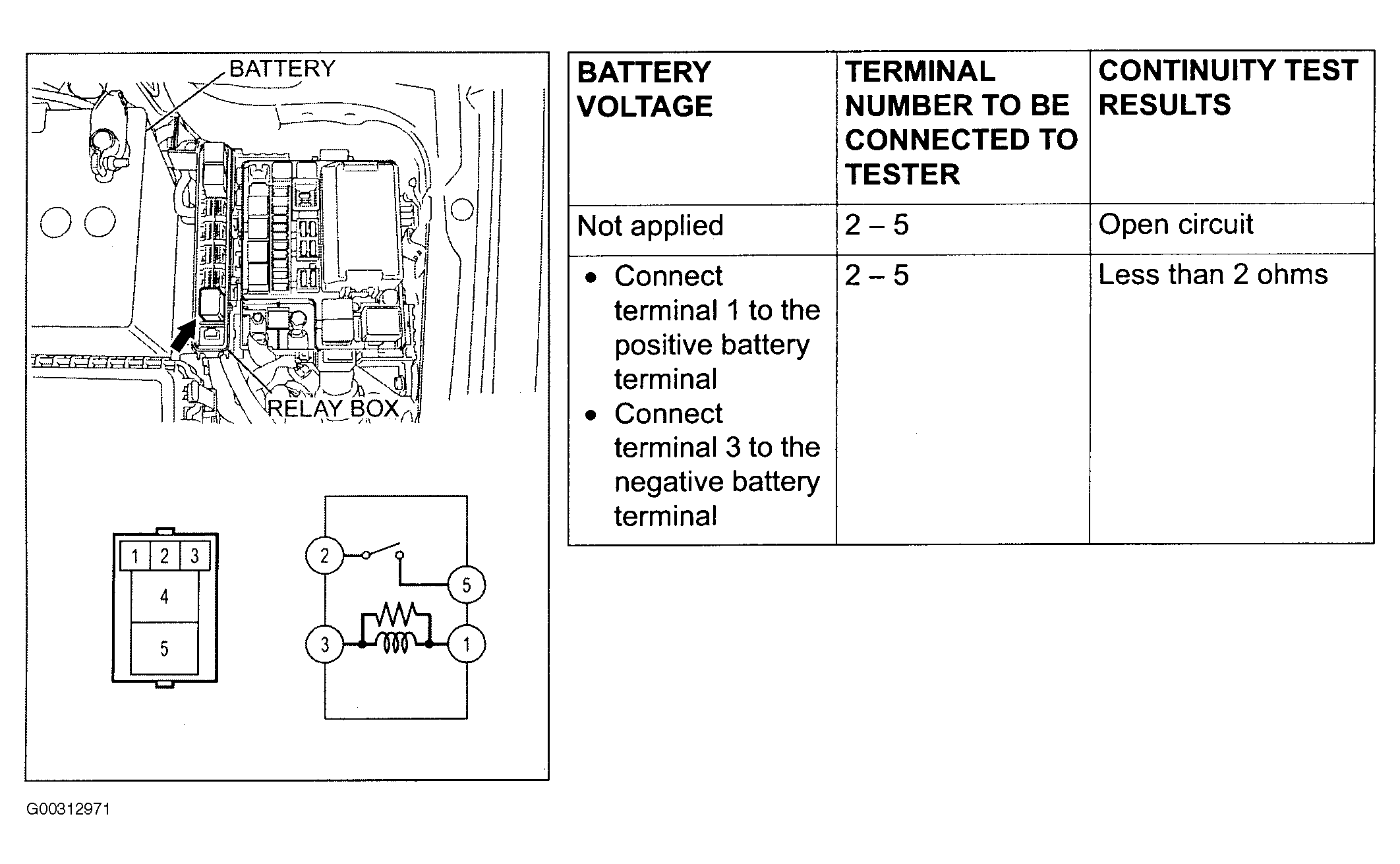

Fig 1
.
Fig 1: Testing Starter Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
