Starters - Evolution: Overhaul: Notes

NOTE: To assist in overhaul use illustration. See Fig 1 .

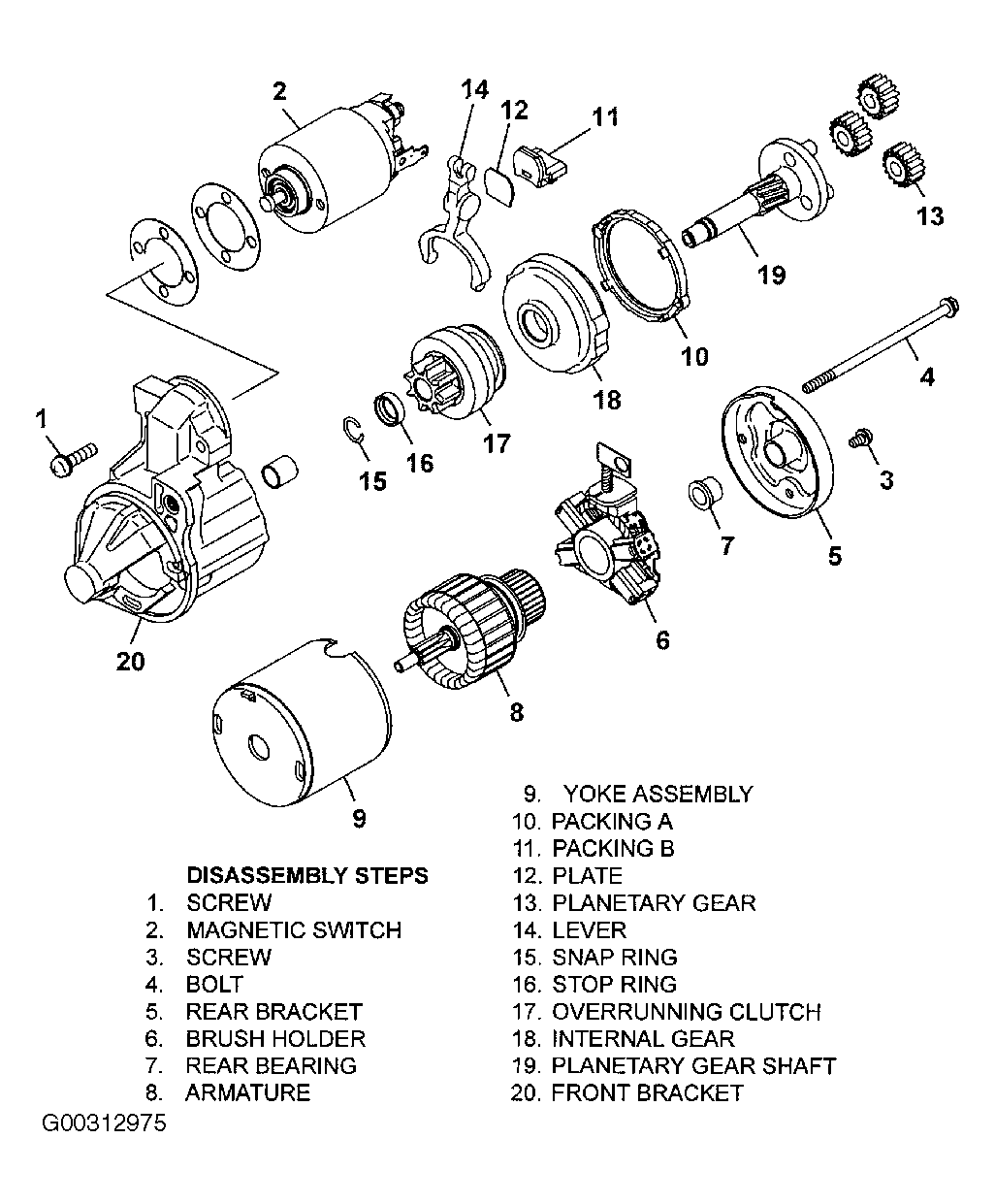

Fig 1: Exploded View of Starter
G00312975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
