Removal And Installation

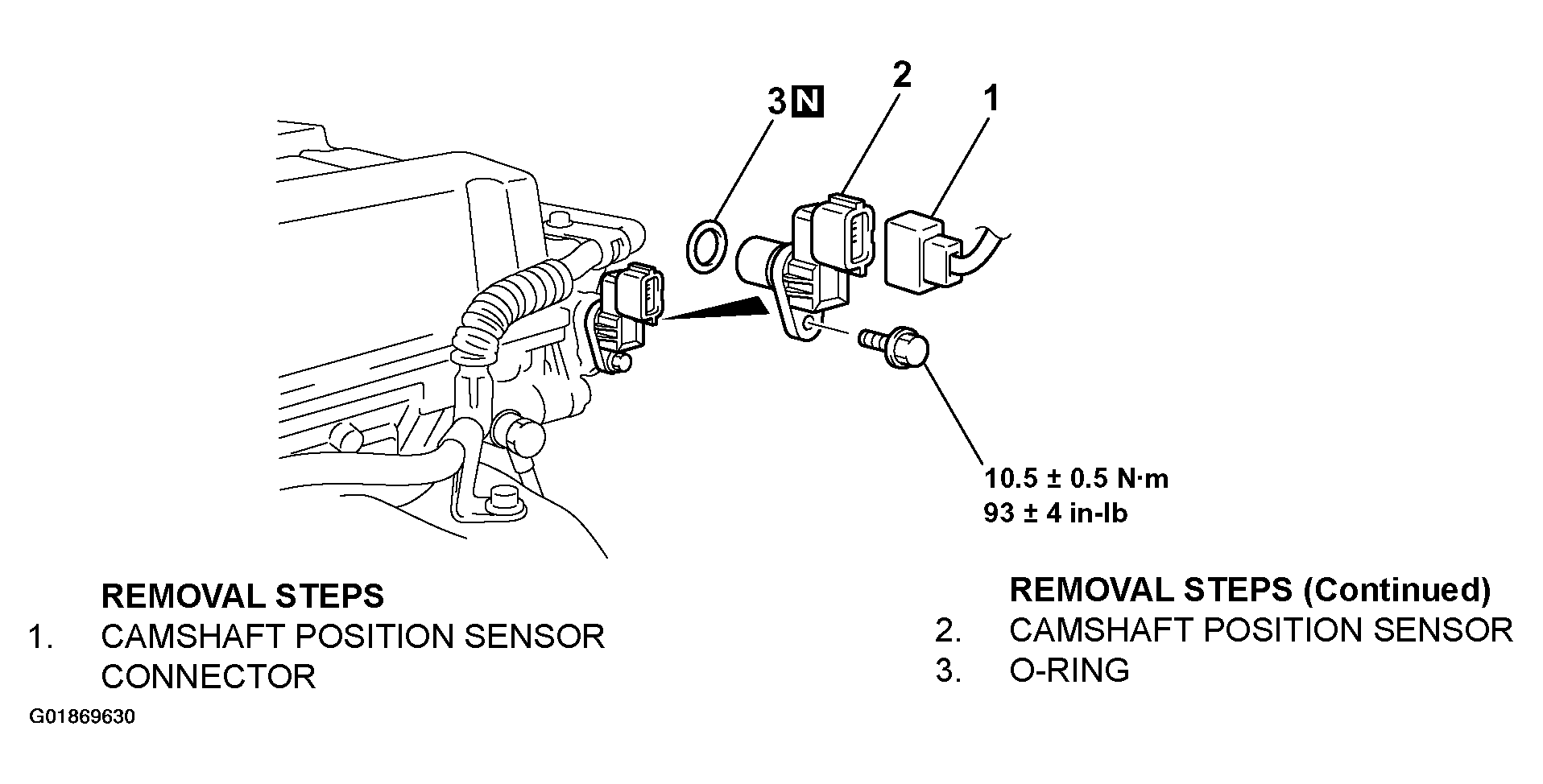

Fig 1: Camshaft Position Sensor Removing Procedure And Torque Specifications
G01869630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
