Removal And Installation

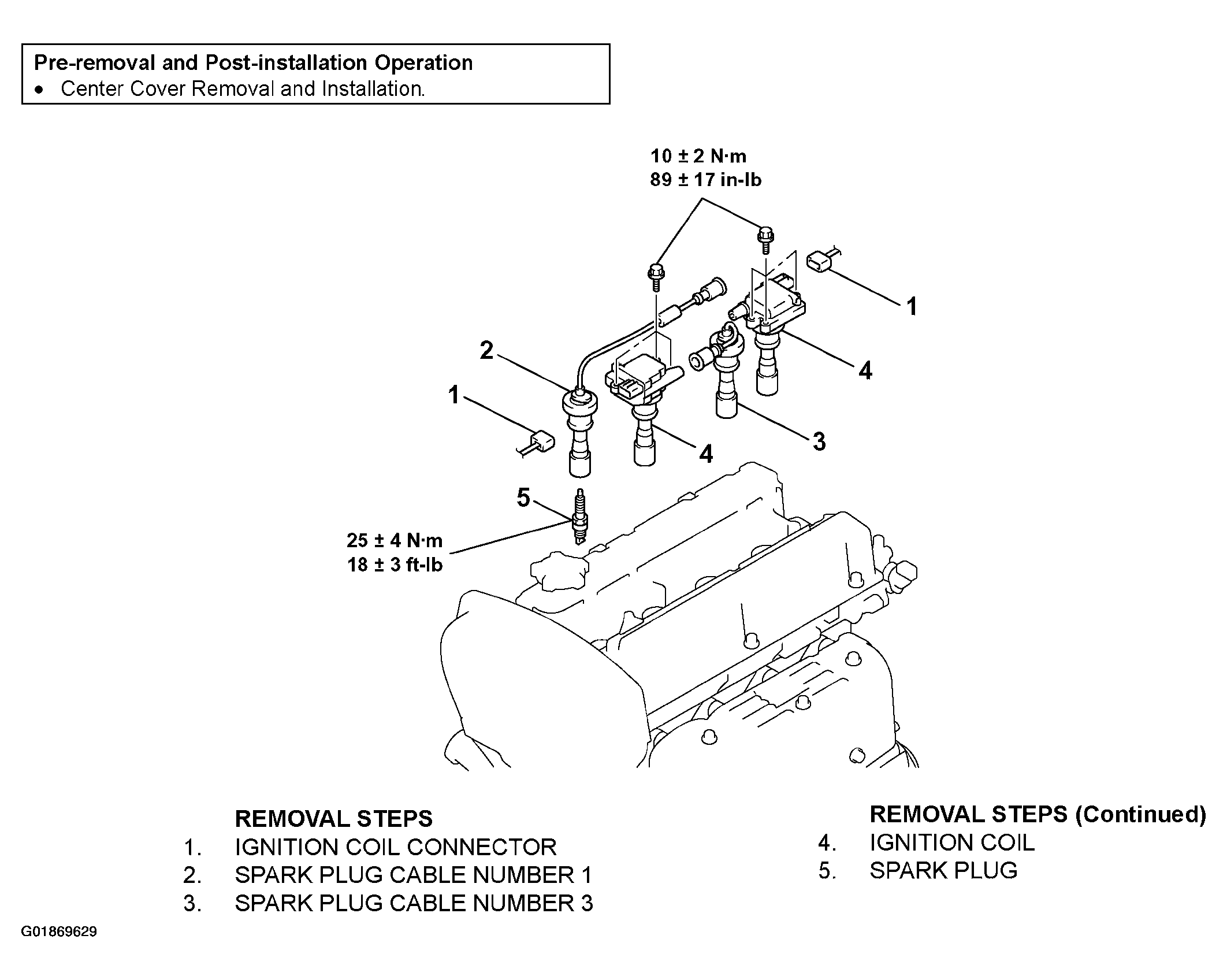

Fig 1: Ignition Coil Removing Procedure And Torque Specifications
G01869629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
