Montero Sport

  1. Turn the ignition off.
  2. Remove the fuel pump relay connector. Connect terminal No. 1 of the harness-side connector to the battery. See Fig 1. Check that the fuel pump operation can be heard at this time.
    NOTE: As the fuel pump is an in-tank type, the fuel pump sound is hard to hear. Remove the fuel tank filler tube cap and check from the tank inlet.
  3. Check the fuel pressure by pinching the fuel hose with your fingertips.
  4. Install the fuel pump relay connector.

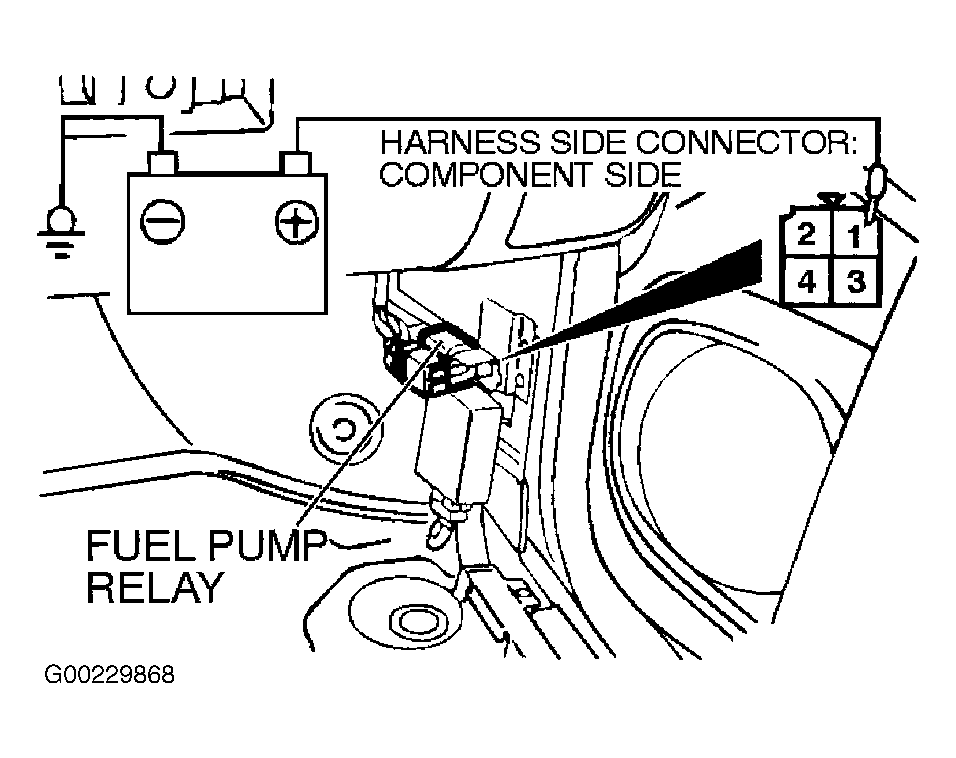

Fig 1: Locating Fuel Pump Relay (Montero Sport)
G00229868Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
