Lancer, Lancer Evolution VIII & Outlander

Remove the rear seat assembly. Remove the protector. Disconnect the fuel pump module connector. See Fig 1-Fig 3. After starting the engine and letting it run until it stops naturally, turn the ignition off. Connect the fuel pump module connector. Install the protector and rear seat assembly.

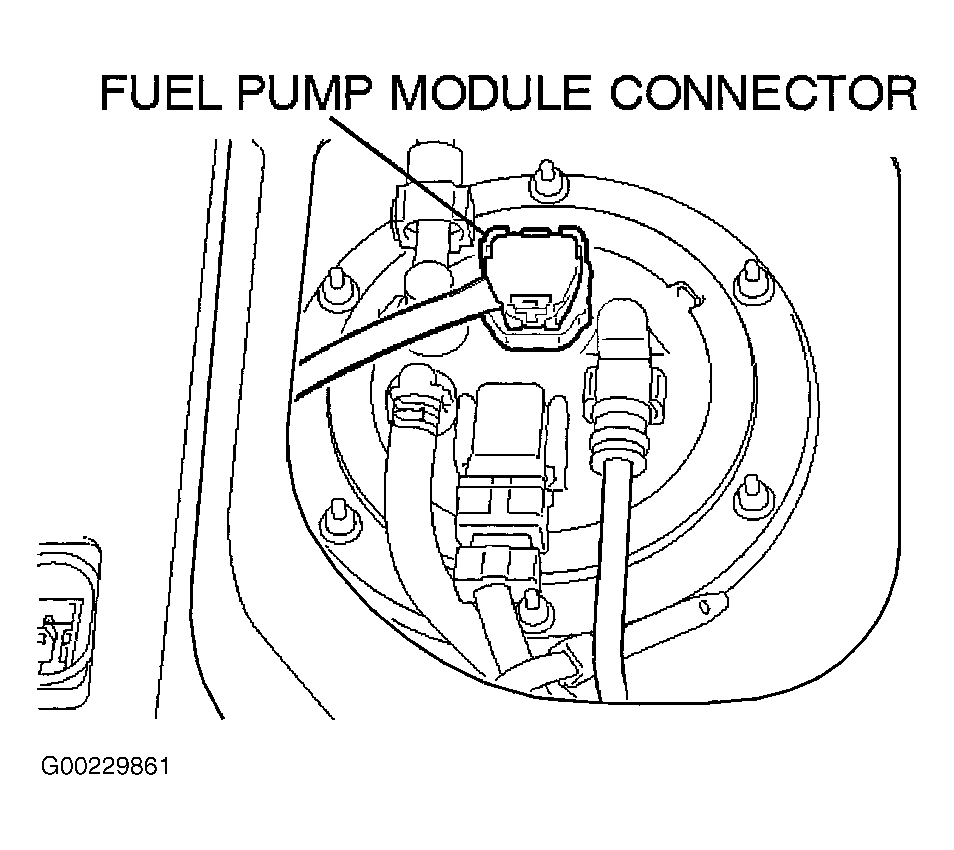

Fig 1: Fuel Pump Module Connector (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

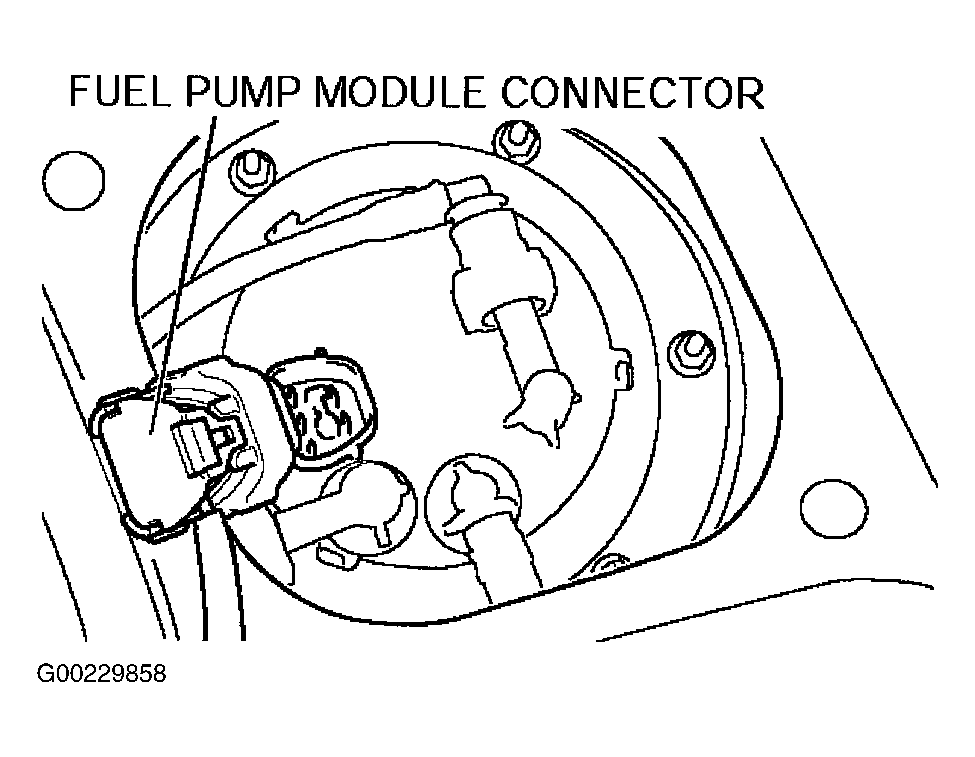

Fig 2: Fuel Pump Module Connector (Lancer Evolution VIII)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

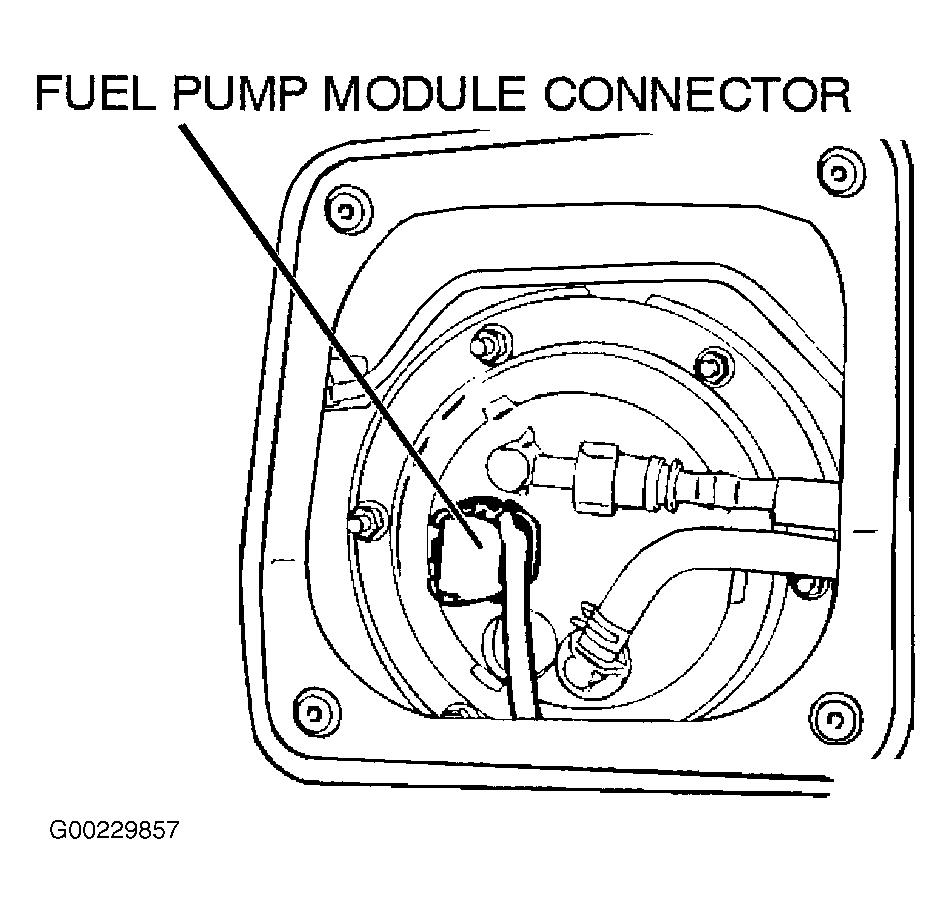

Fig 3: Fuel Pump Module Connector (Outlander)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
