OBD-II Drive Cycles
>>
Drive Cycle Procedures
>>
2001 Montero
>>
Pattern 12
>>
Drive Cycle Pattern
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Drive Cycle Pattern

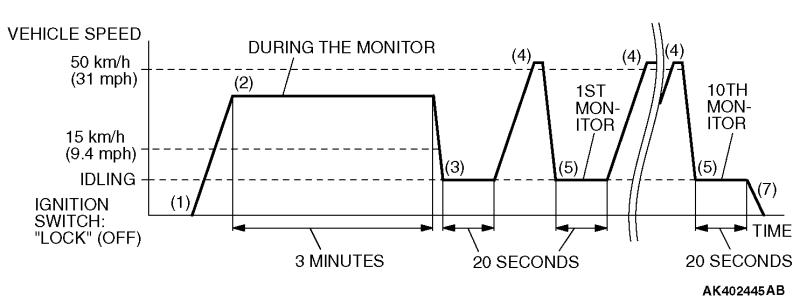

Fig 1: Drive Cycle Pattern 12
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
