Specifications - Evolution: Specifications

For wheel alignment specifications, see Fig 1 .

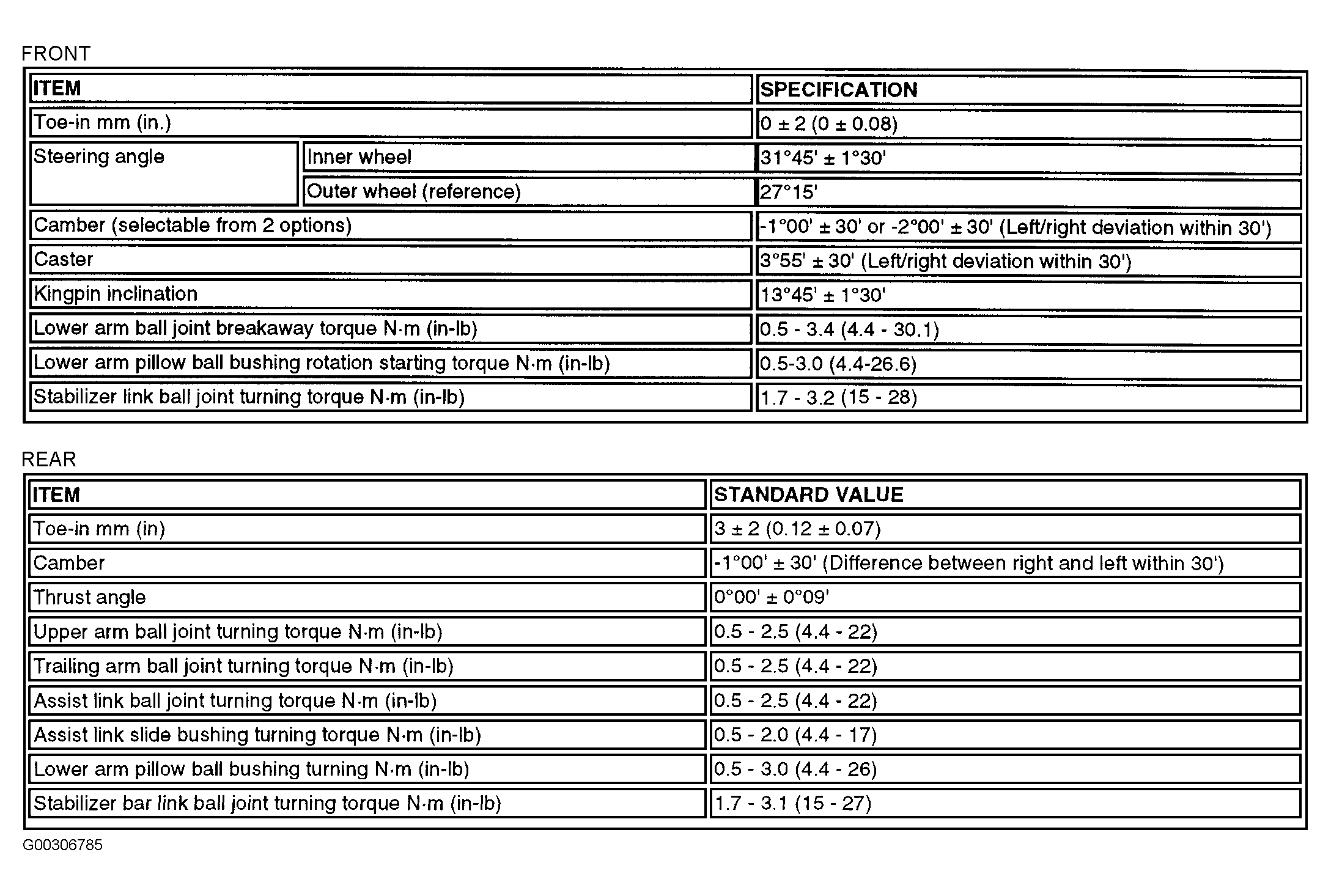

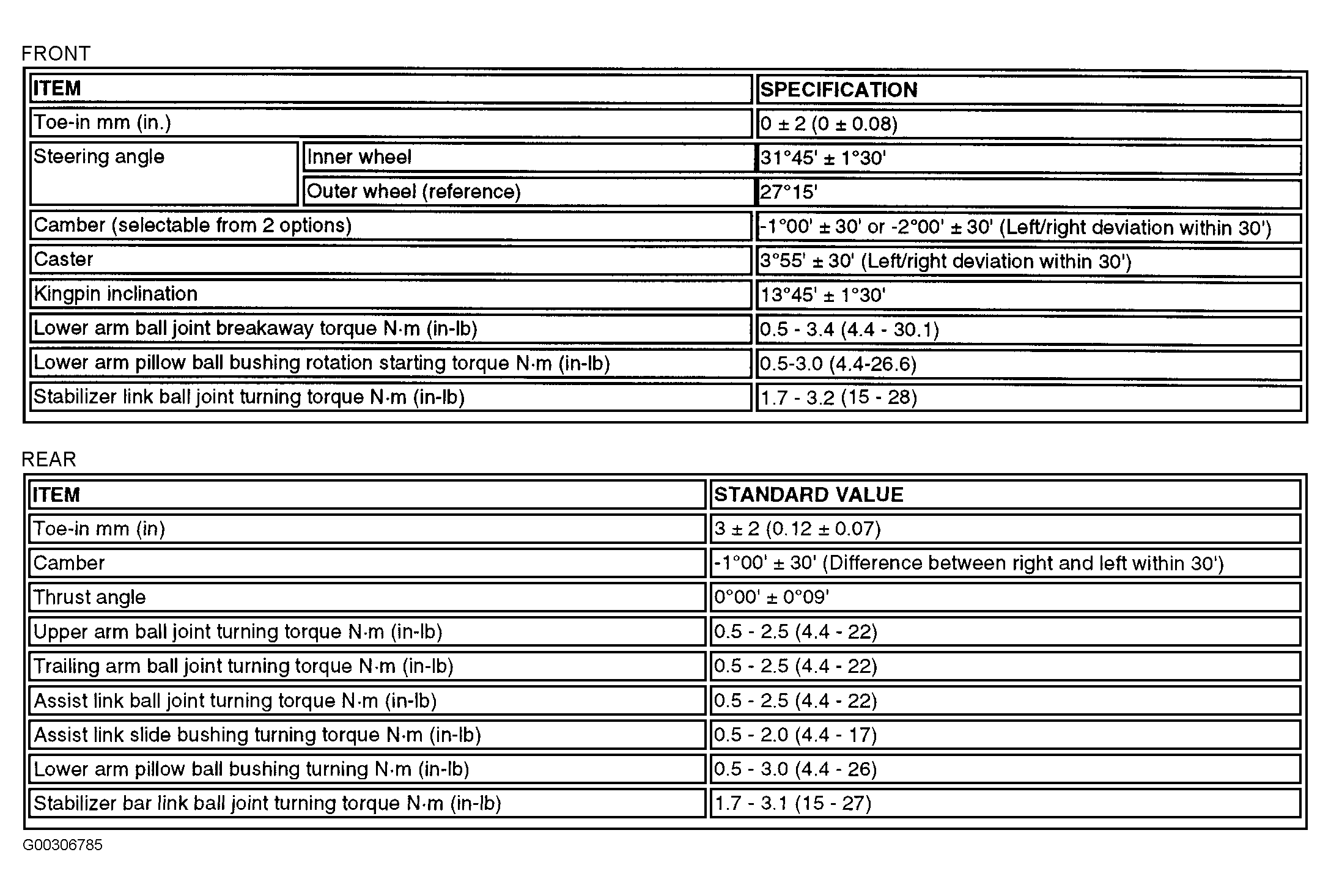

Fig 1: Wheel Alignment Specifications
G00306785Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
