Brush Holder Check

Check for the continuity between the brush holder plate and the brush holder. See Fig 1 . There should be no continuity.

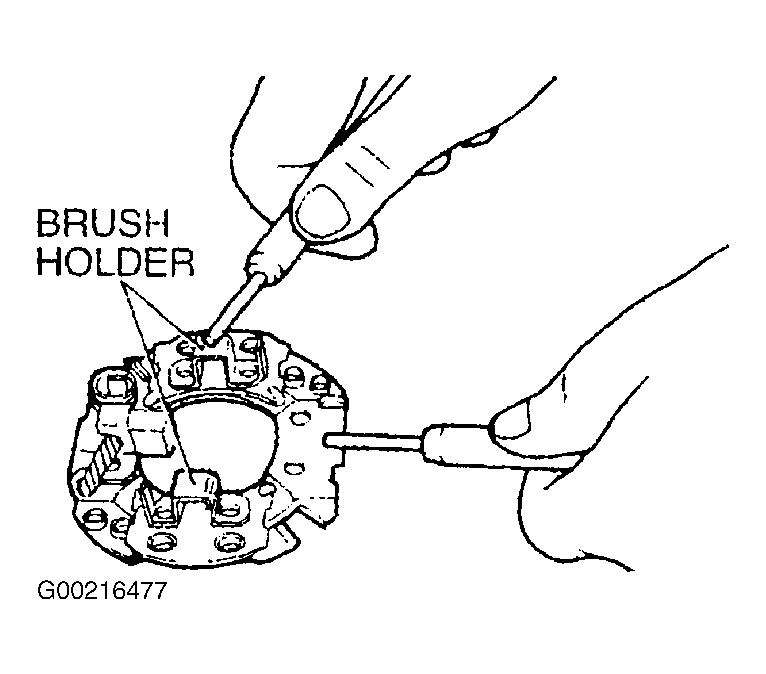

Fig 1: Checking Continuity Between Brush Holder

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
