Starters - Except Evolution: Overhaul: Notes

NOTE: To assist in overhaul use illustration. See Fig 1 .

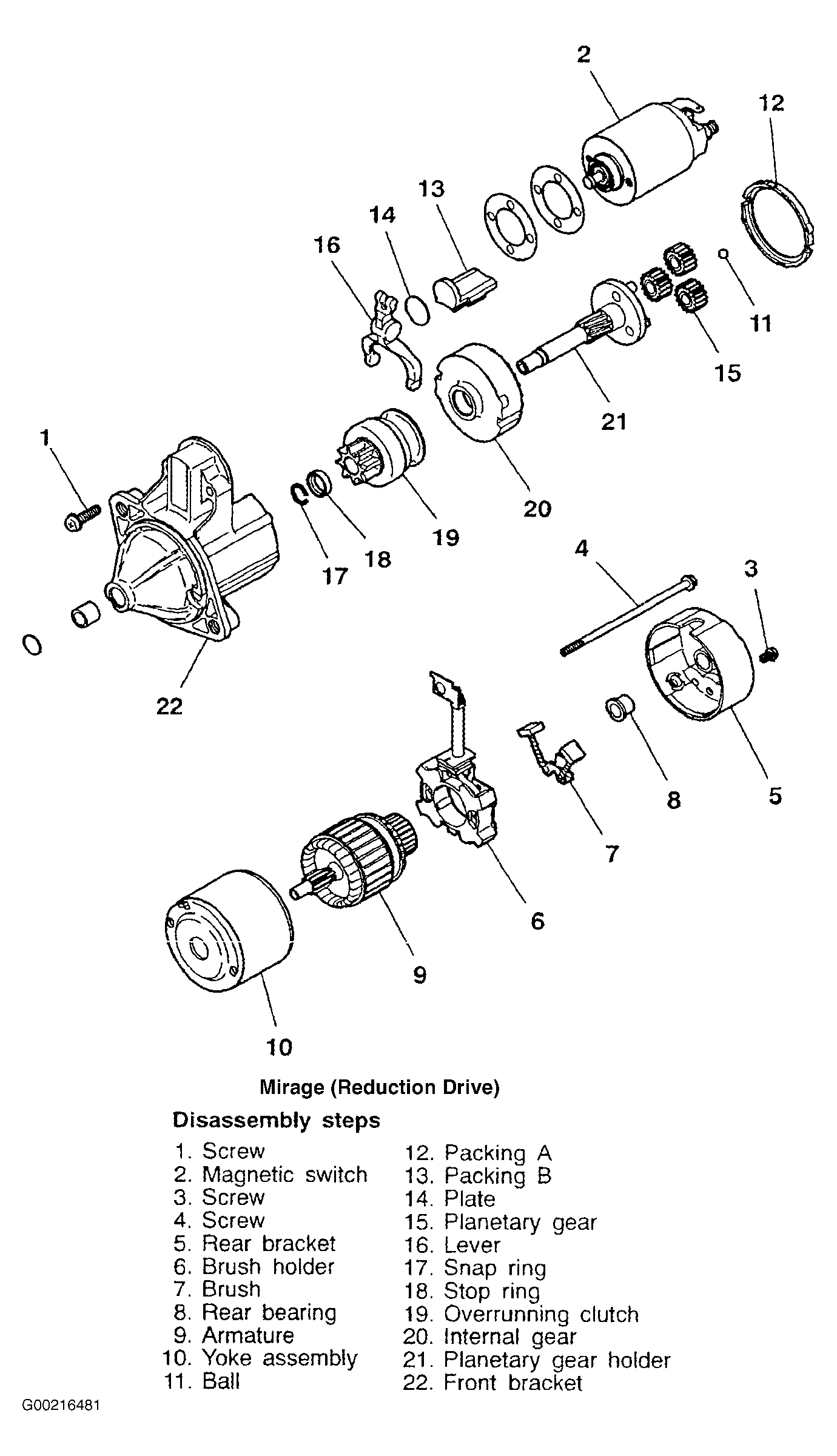

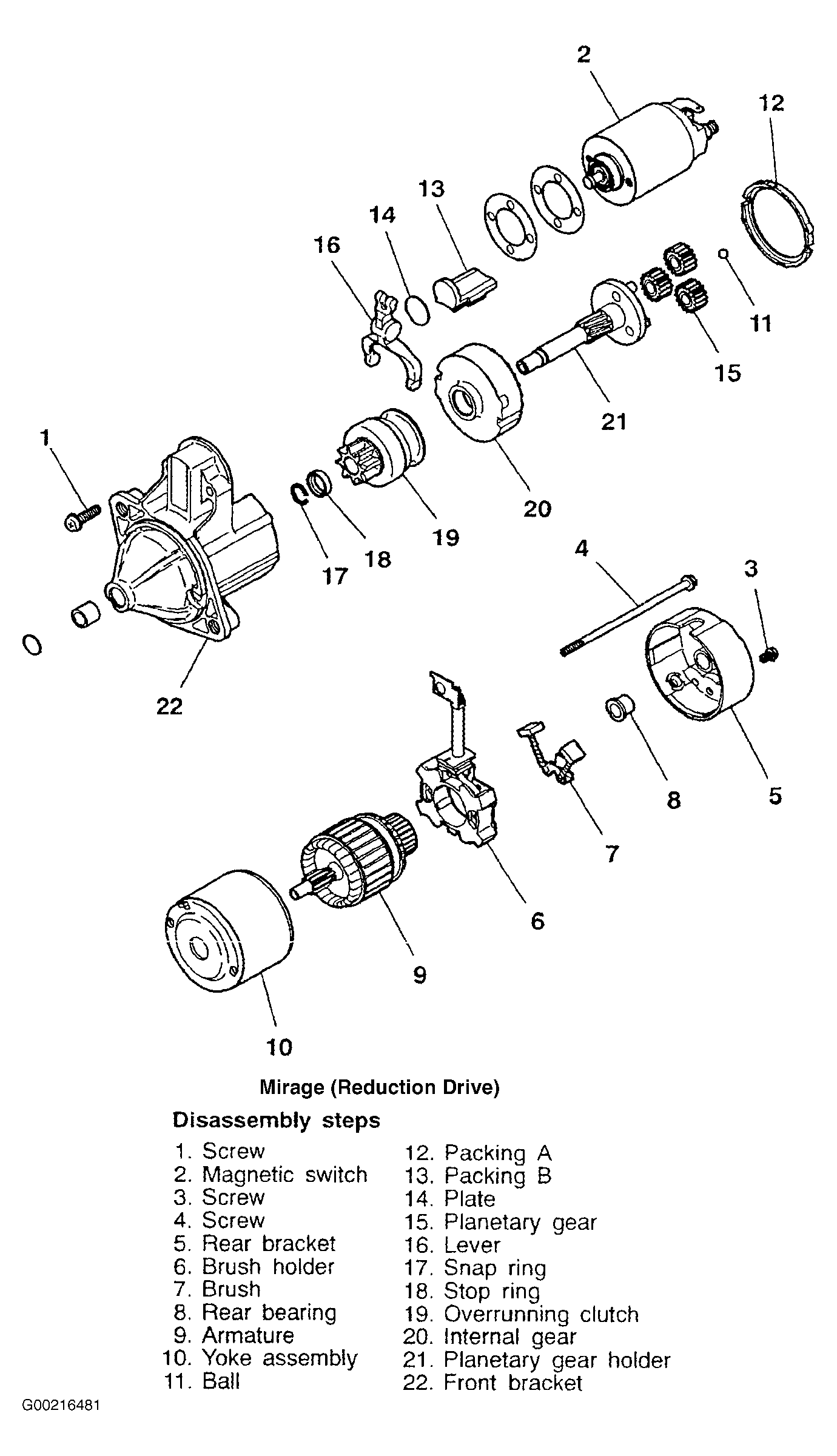

Fig 1: Exploded View Of Starter Motor
G00216481Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
