Removal And Installation

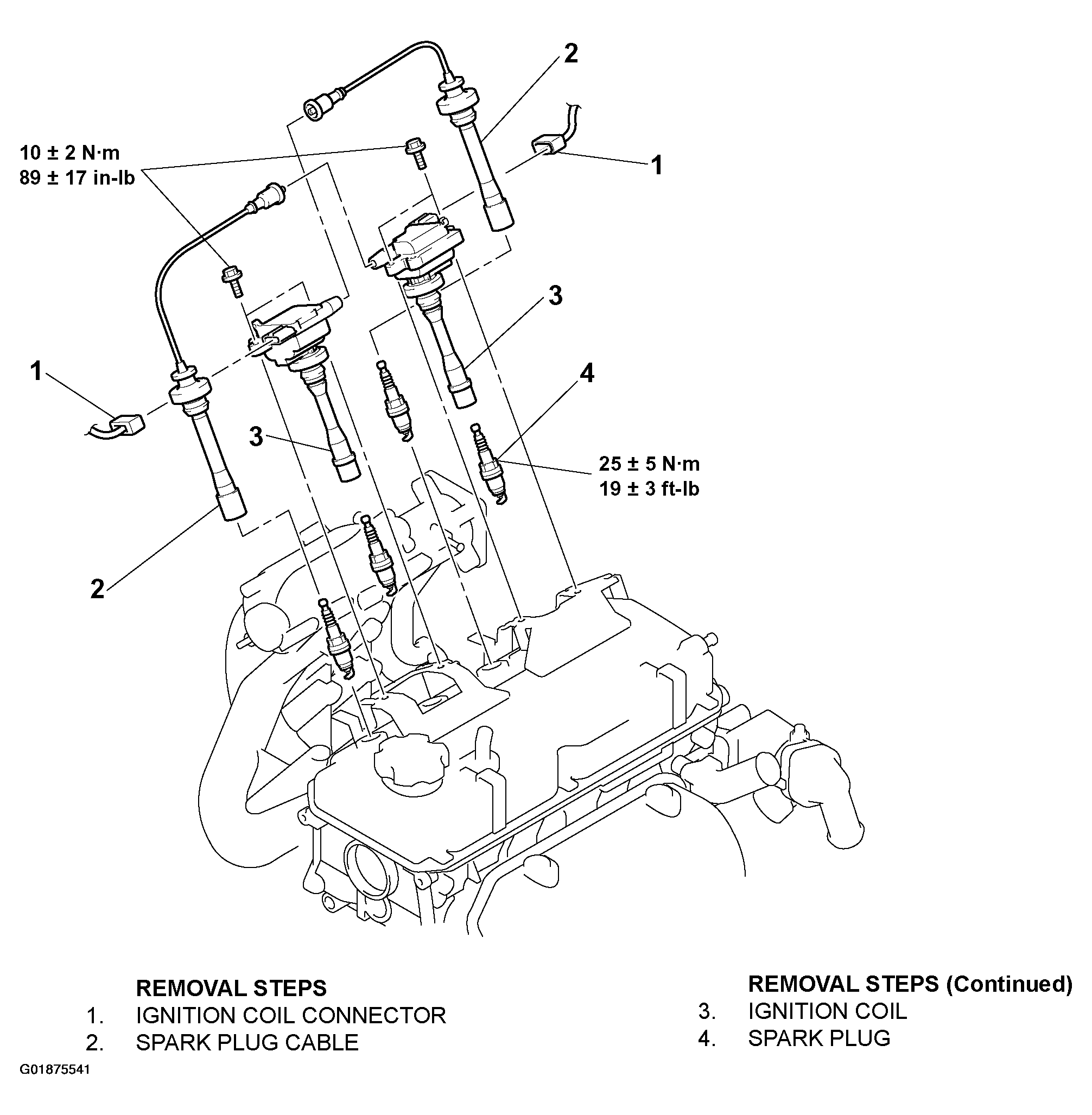

Fig 1: Removing/Installation Ignition Coil
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
