Specifications - Except Evolution: Specifications

For wheel alignment specifications, see Fig 1 .

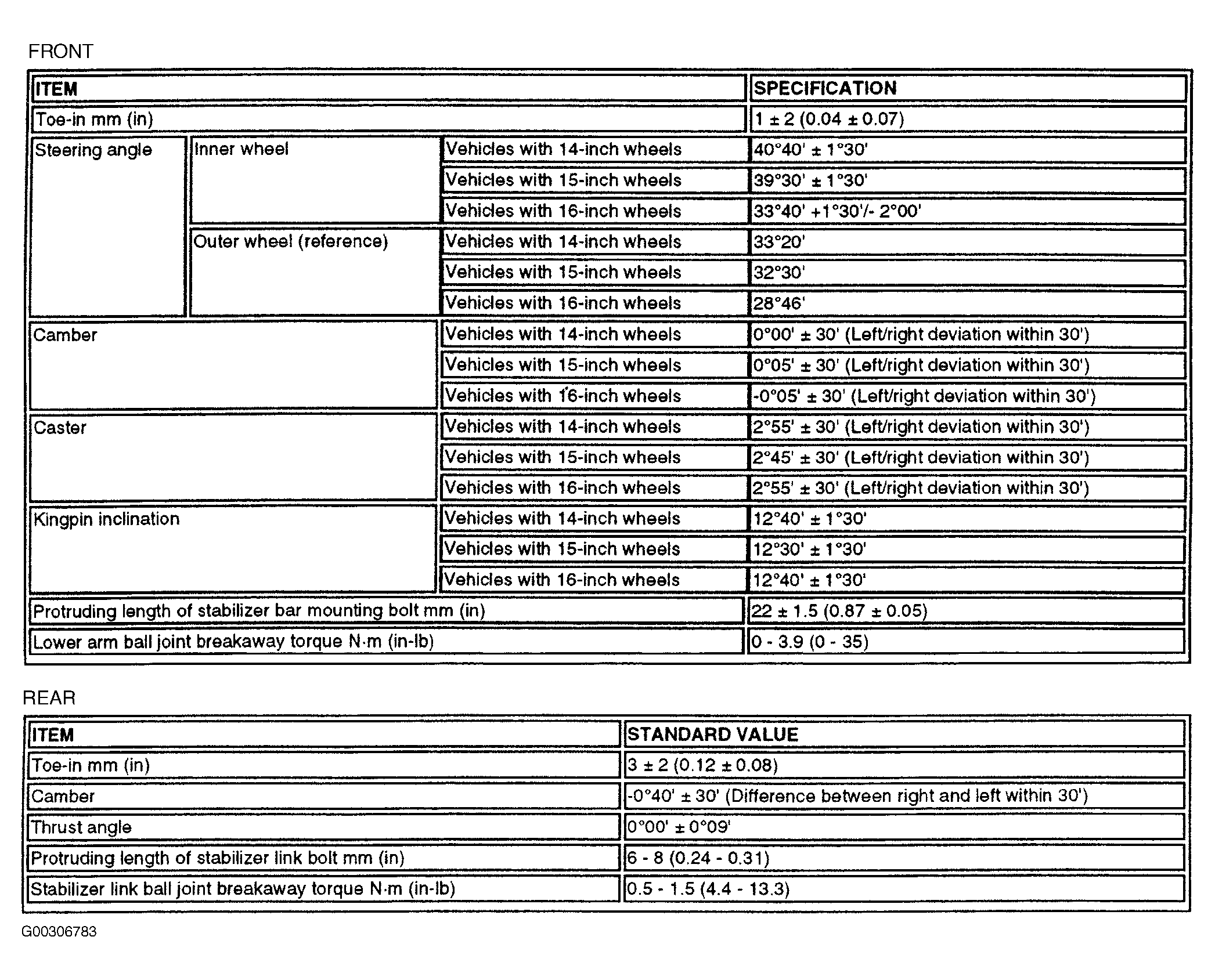

Fig 1: Wheel Alignment Specifications
G00306783Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
