DTC 54: A/T Control Relay System: Notes

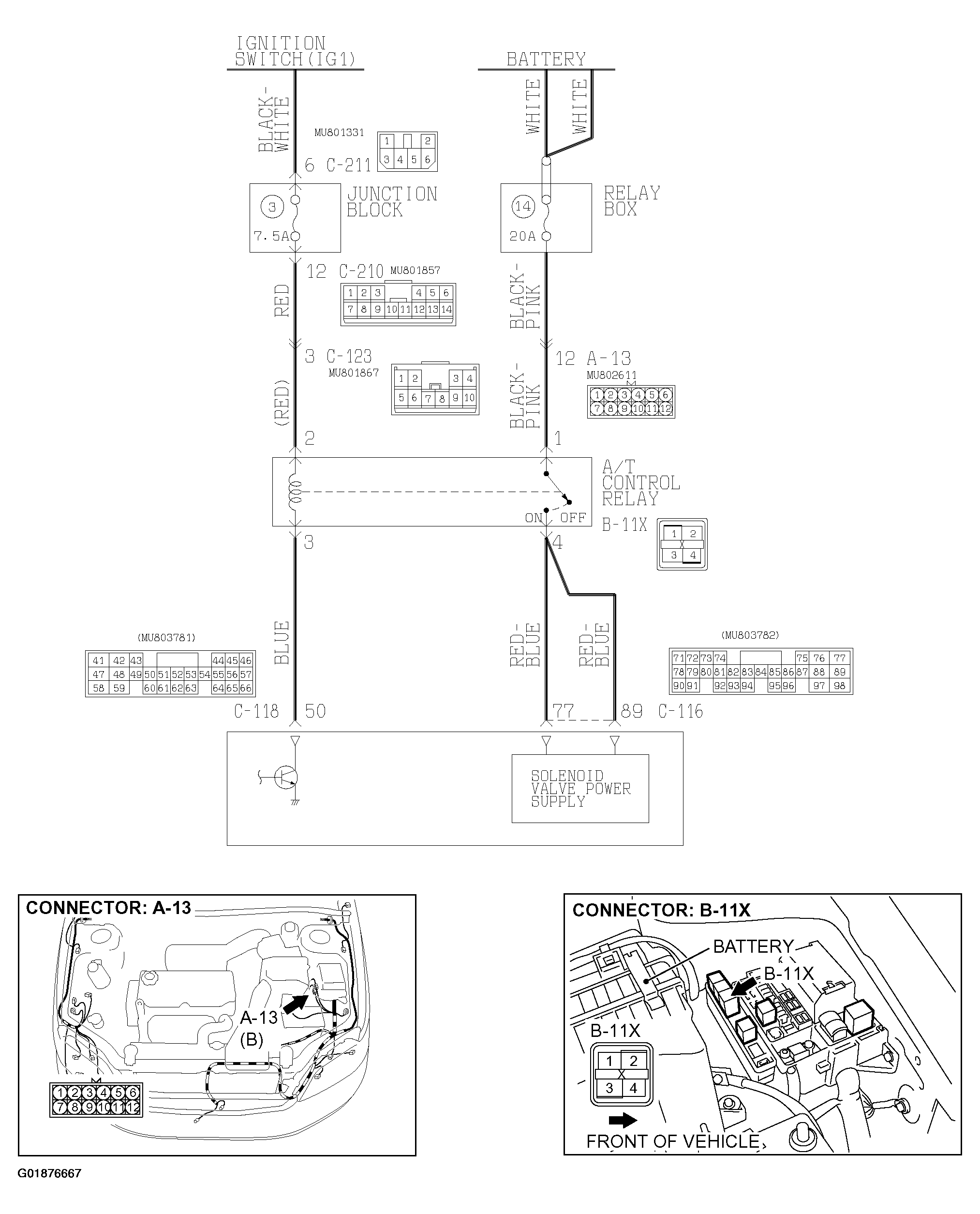

Fig 1: A/T Control Relay System Circuit Diagram
G01876667Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

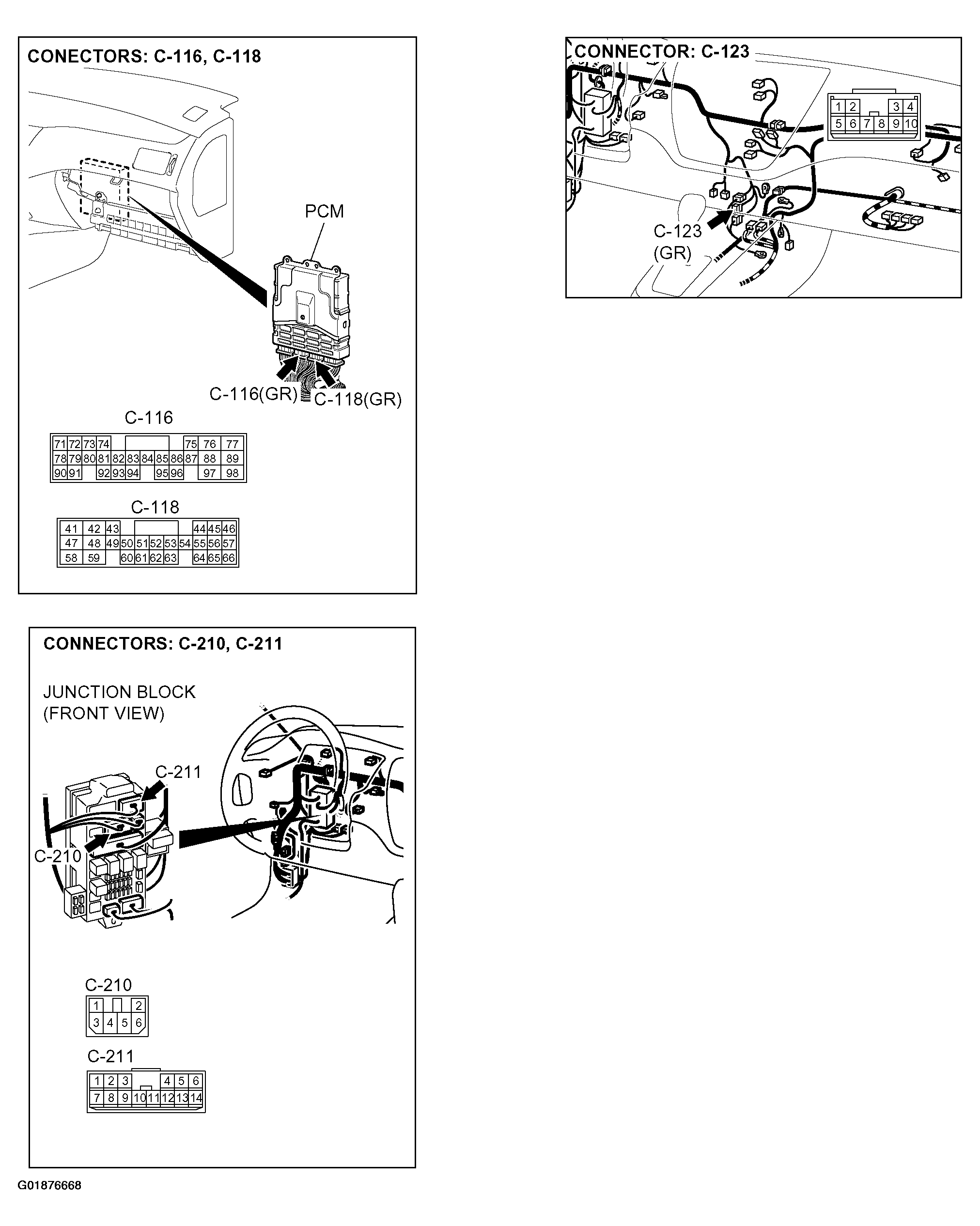

Fig 2: A/T Control Relay System Connectors
G01876668Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
