Commutator Check

Place the armature on a pair of V- blocks and check the runout by using a dial gauge. See Fig 1 . See STARTER SPECIFICATIONS .

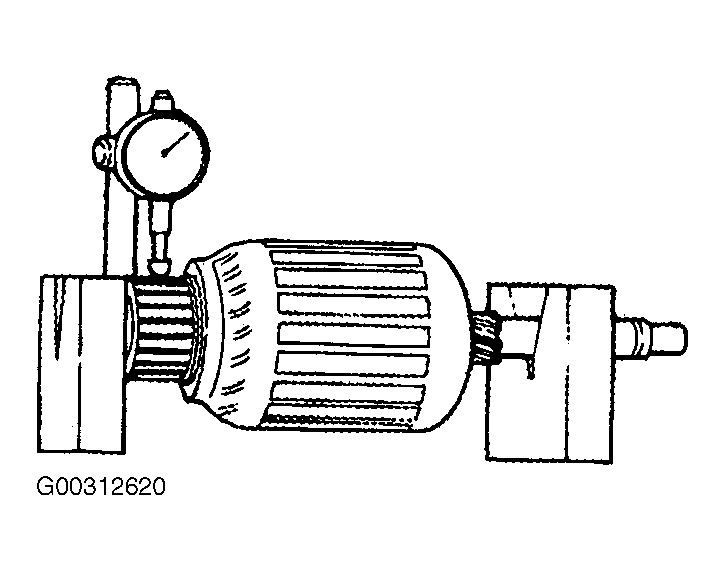

Fig 1: Checking Deflection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the outer diameter of the commutator. See Fig 2 . See STARTER SPECIFICATIONS .

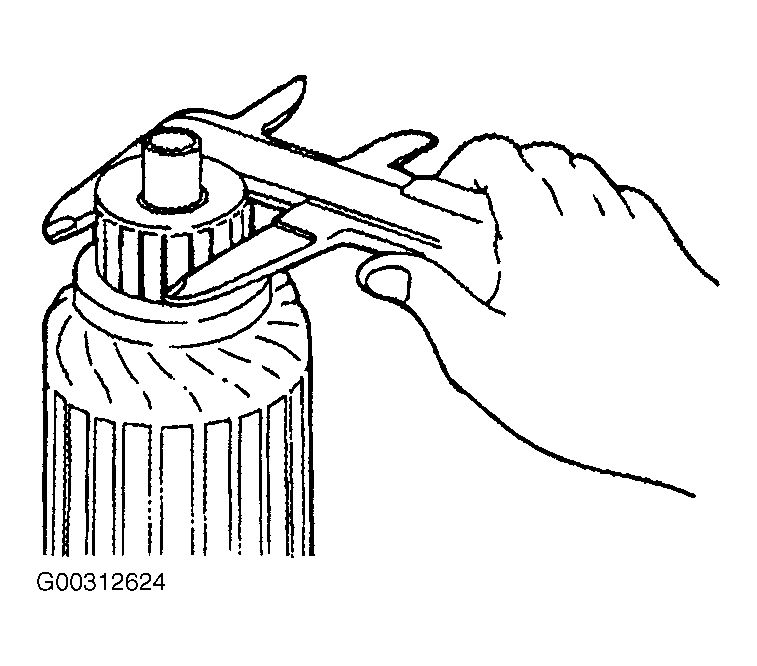

Fig 2: Checking Diameter Of Commutator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the depth of the undercut between segments. See Fig 3 . See STARTER SPECIFICATIONS .

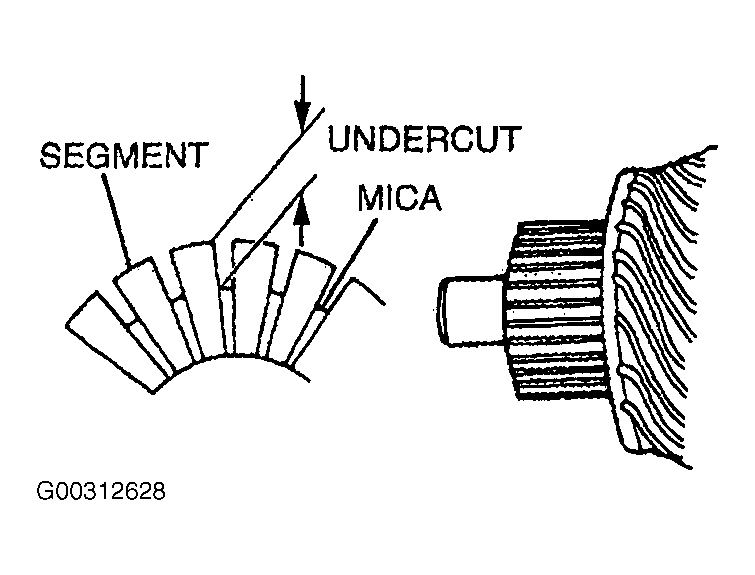

Fig 3: Checking Depth Of Undercut Between Segments
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Replace commutator if runout, diameter or undercut depth is not within specification.
