Removal And Installation

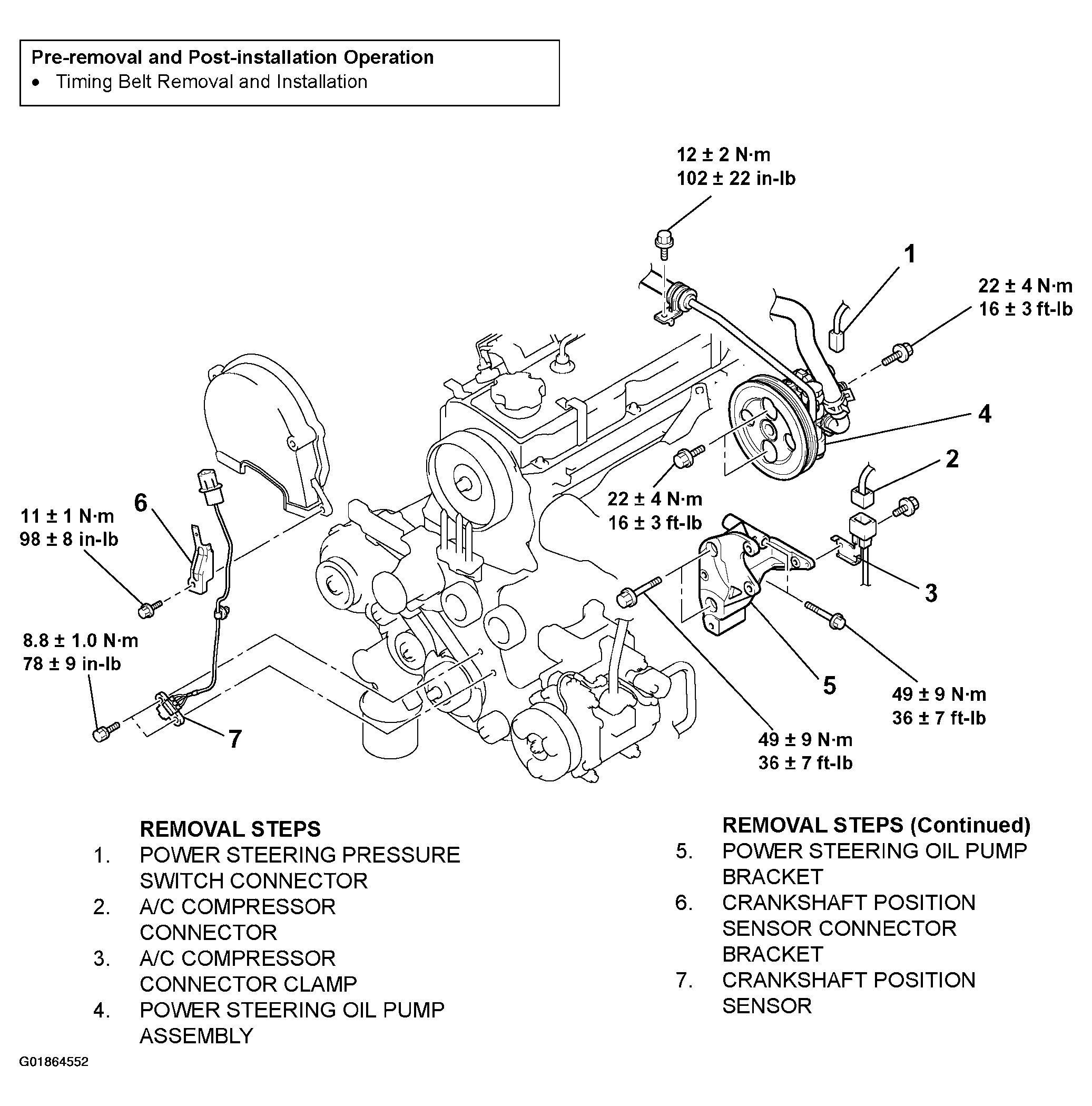

Fig 1: Removing & Installing Crankshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
