Spark Plug Cable Resistance Check

Measure the resistance of the all spark plug leads.

1. Check the cap and coating for cracks.
2. Measure the resistance.

   Limit: 19 kohm

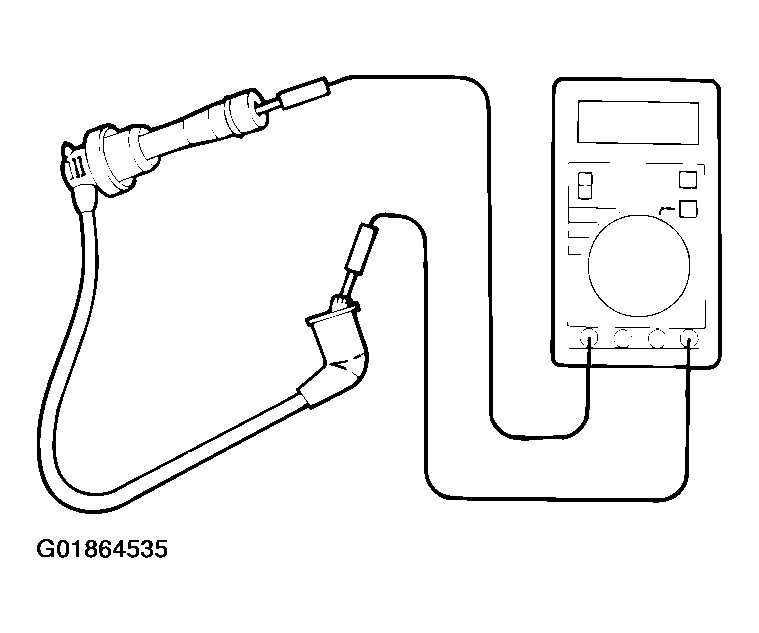

   Fig 1: Measuring Resistance Of Spark Plug Leads

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
