No Communication With Engine Control Module/Powertrain Control Module: Description

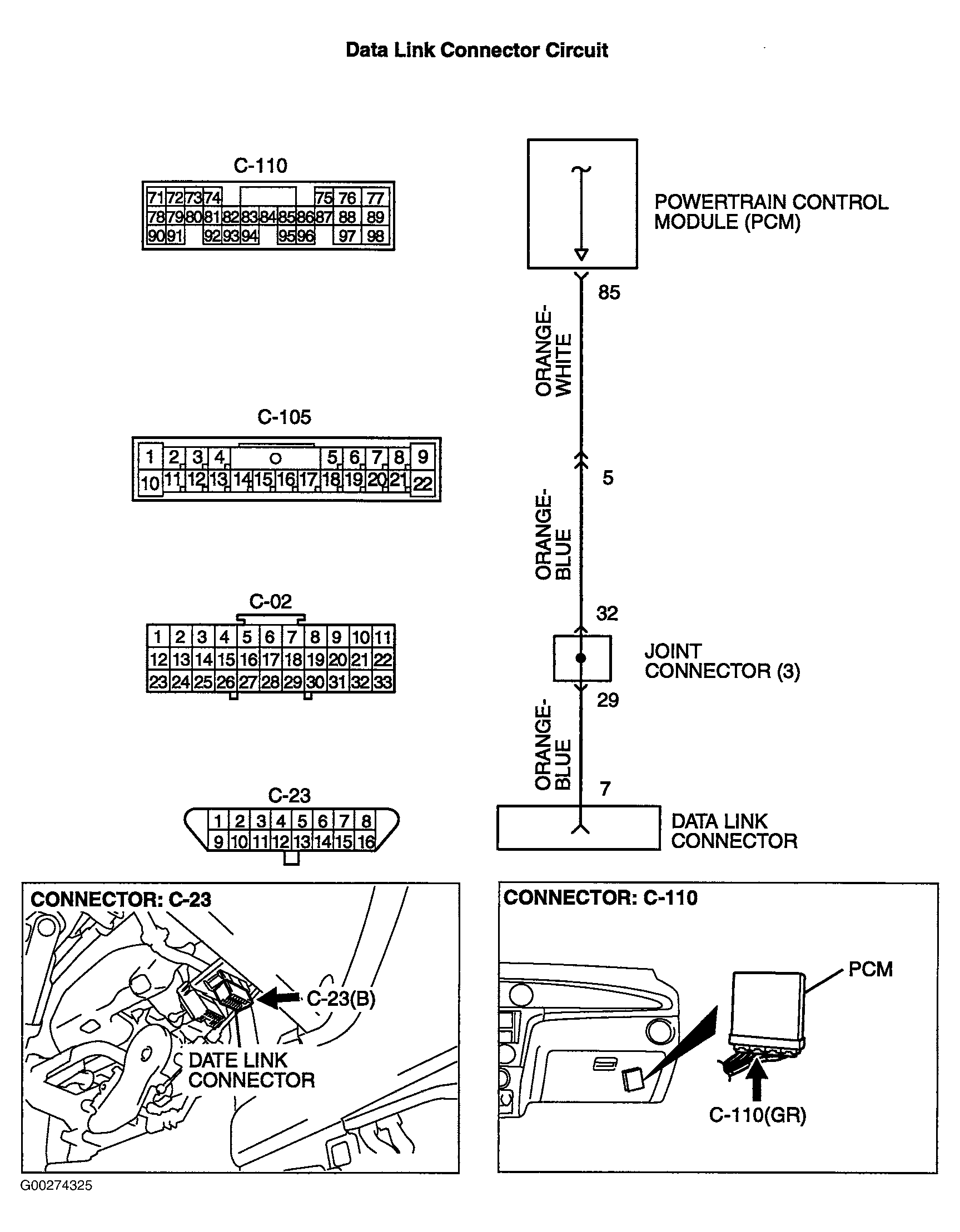

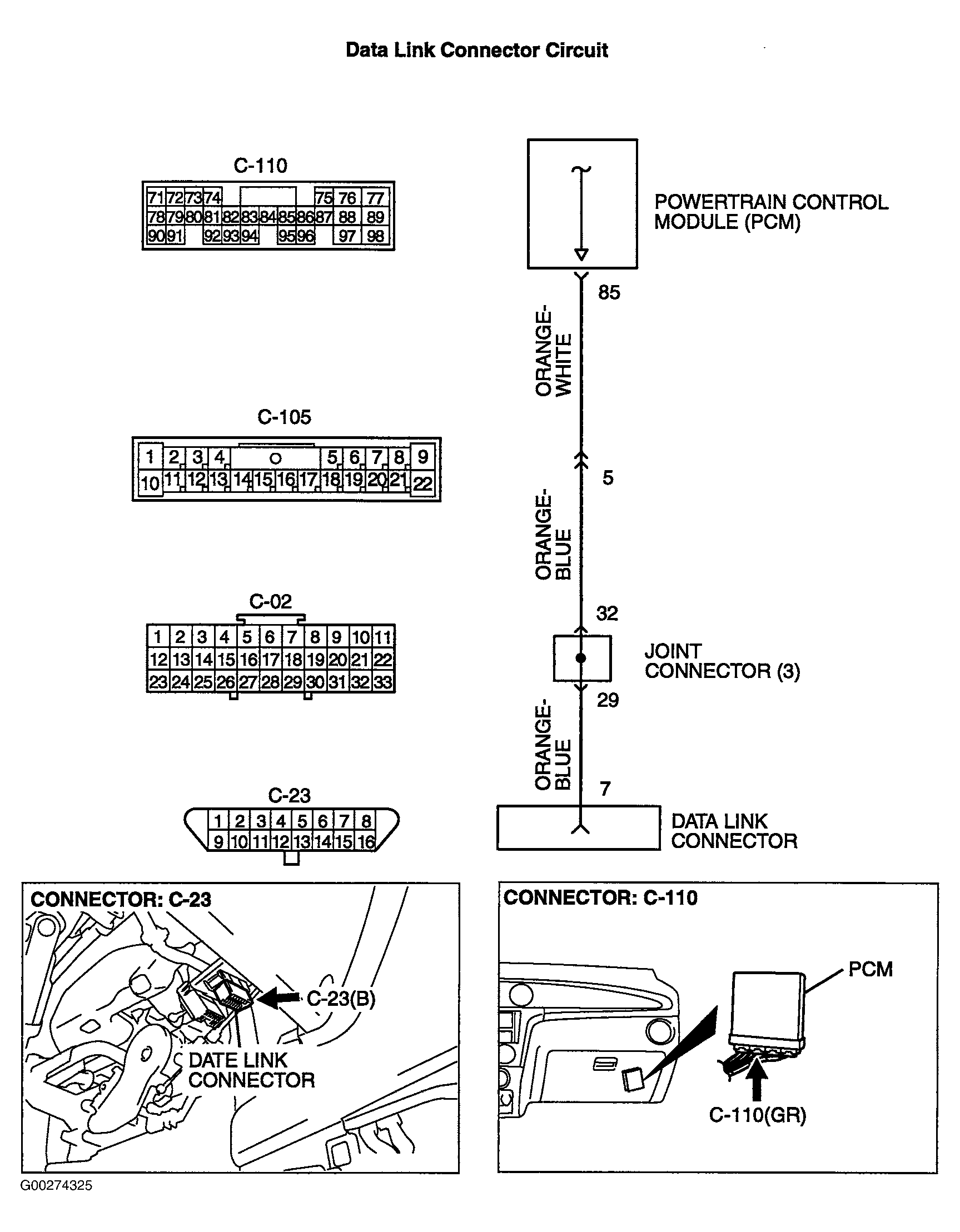

A diagnostic output is made from the PCM (terminal No. 85) to the diagnostic output terminal (terminal No. 7) of the DLC. See Figure .
