Disassembly And Assembly

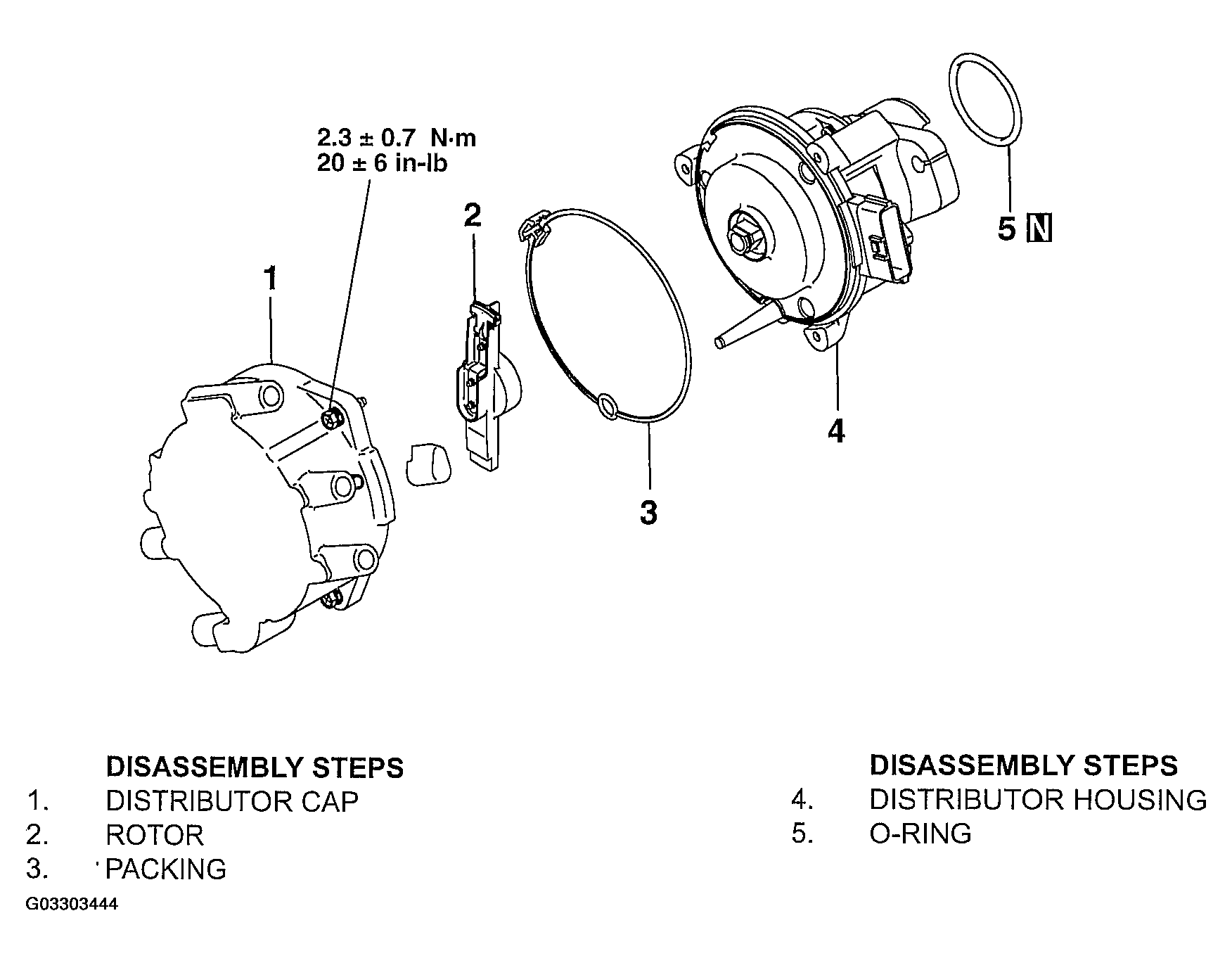

Fig 1: Exploded View Of Distributor Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
