Removal And Installation < 3.0L Engine): Notes

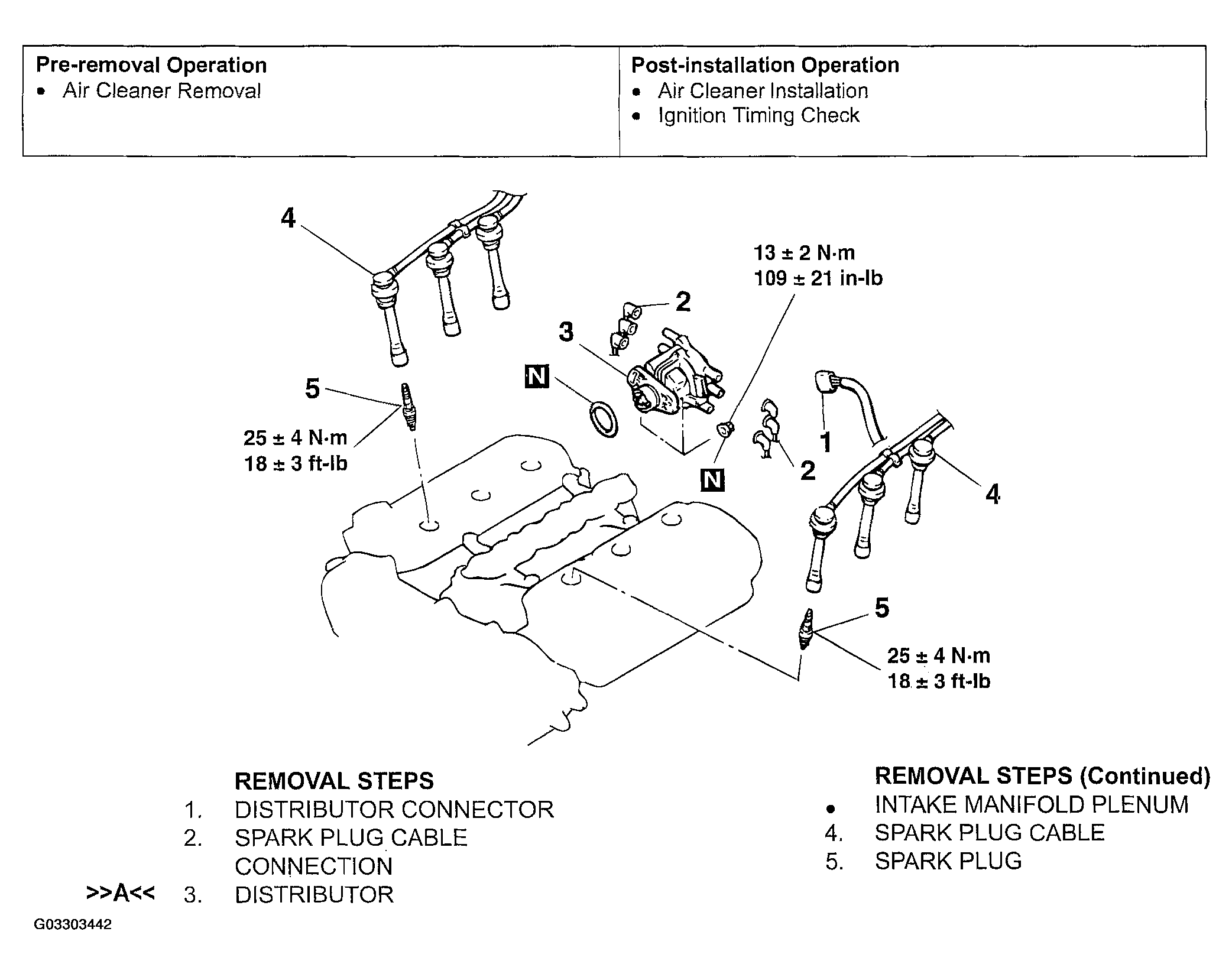

Fig 1: Removing And Installing Distributor Assembly Components (3.0l Engine)
G03303442Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
