Spark Plug Cable Resistance Check

Measure the resistance of the all spark plug leads.

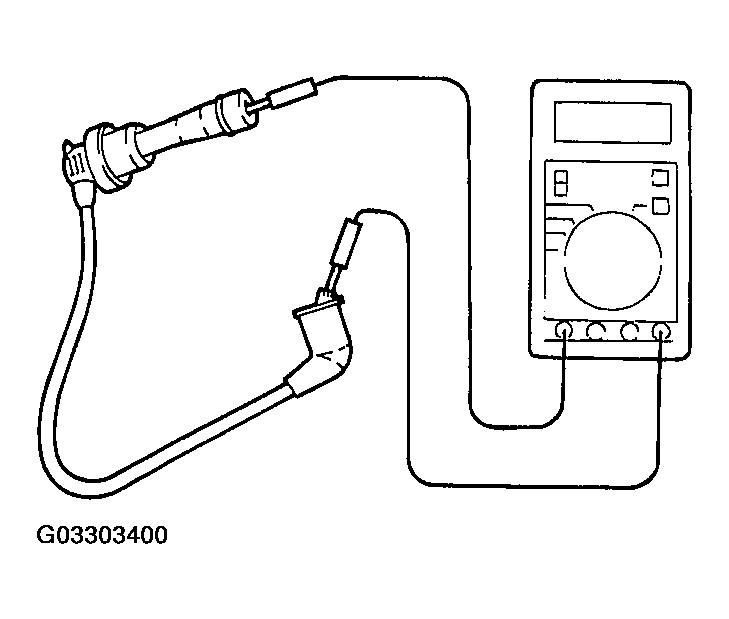

Fig 1: Measuring Resistance Of All Spark Plug Leads
G03303400Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Check the cap and coating for cracks.
  2. Measure the resistance.

    Limit: 19 kΩ
