Removal And Installation < 2.4L Engine>: Notes

CAUTION: Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

Pre-removal and Post-installation Operation

Air Cleaner Removal and Installation (Refer to REMOVAL AND INSTALLATION .)
Intake Manifold Stay Removal and Installation (Refer to REMOVAL AND INSTALLATION .)

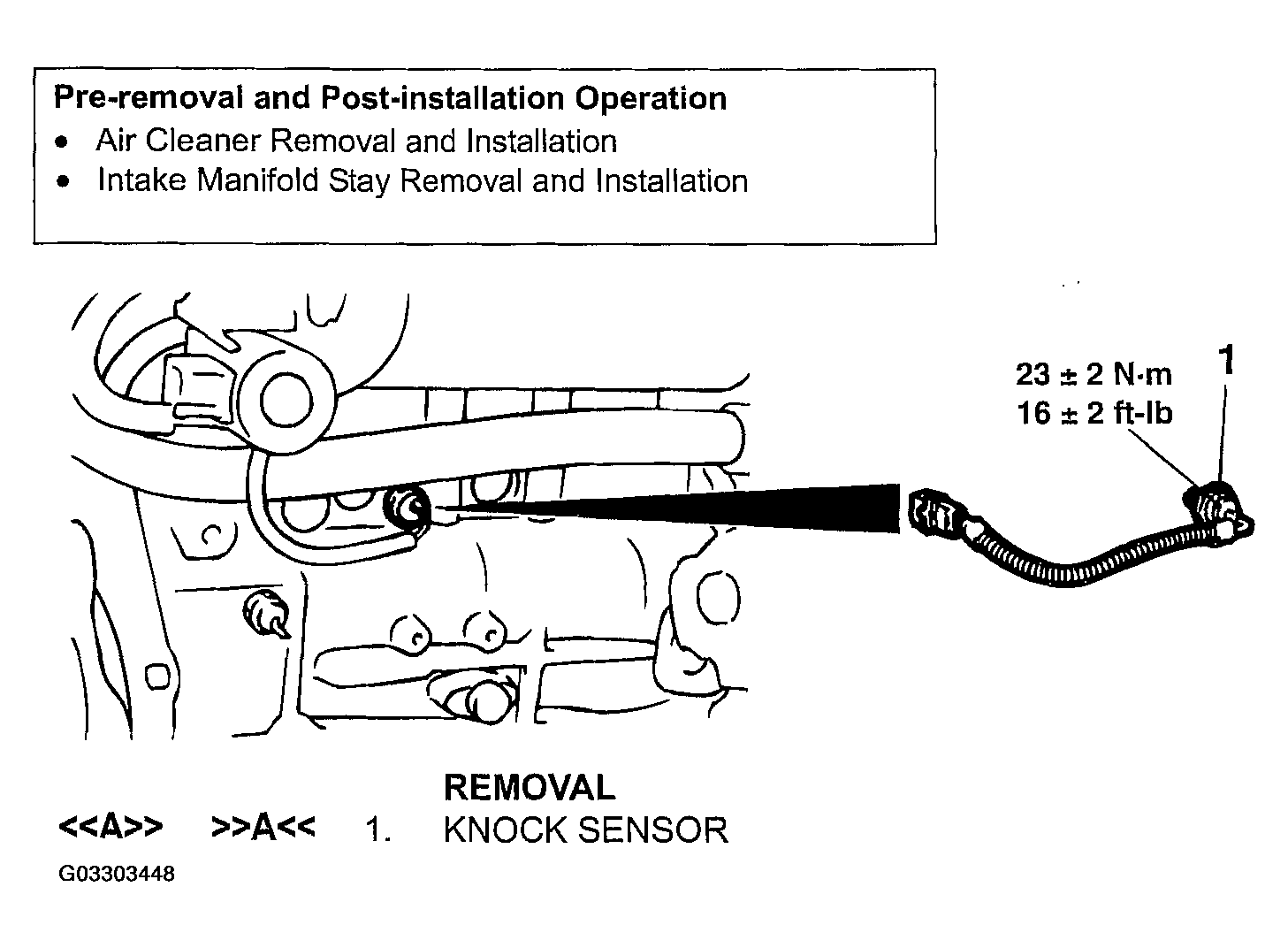

Fig 1: Removing And Installing Knock Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
