3.0L Engine

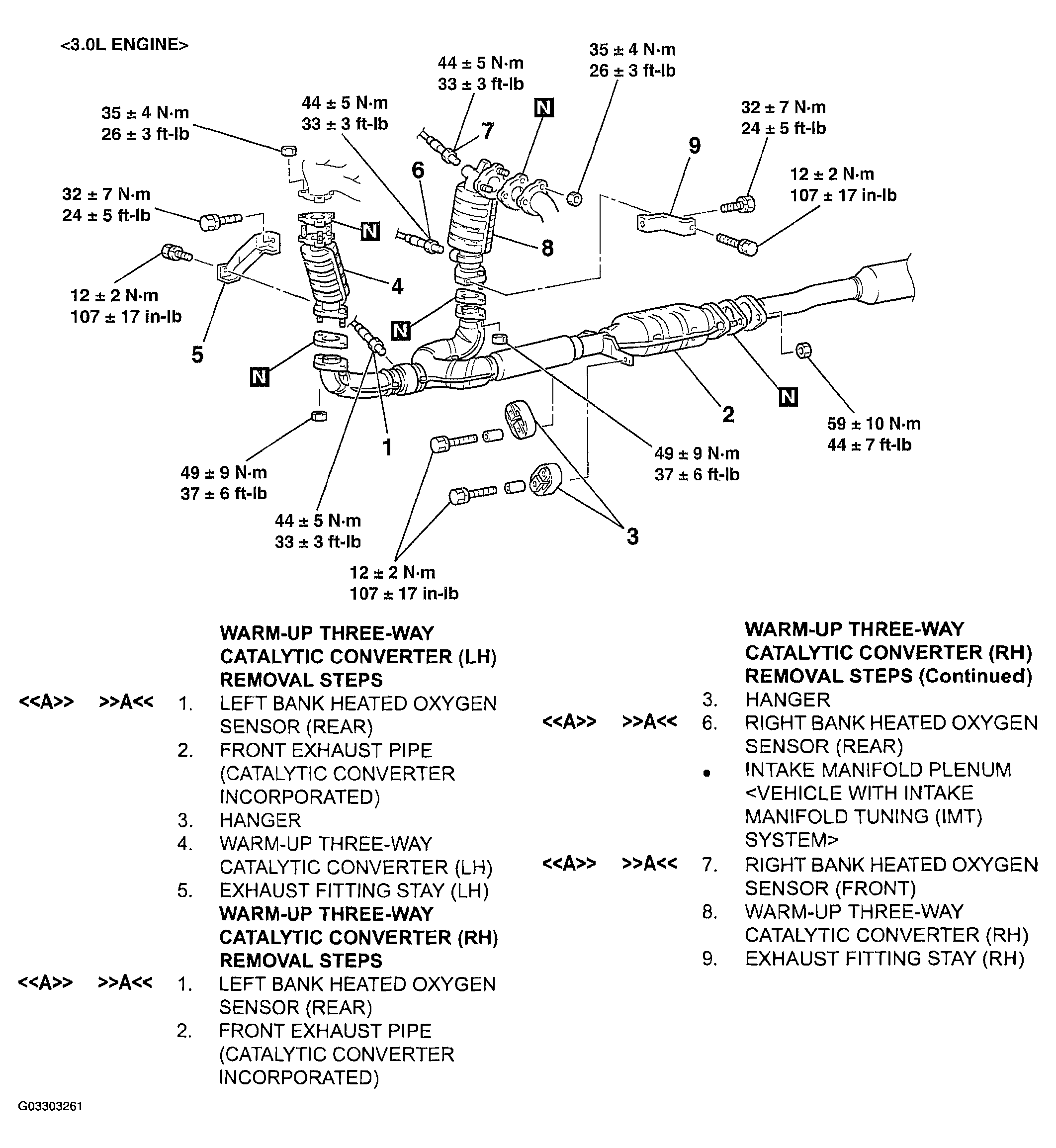

Fig 1: Identifying Catalytic Converter (3.0L Engine)
G03303261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998770: Oxygen sensor wrench
