Spark Plug Test

1. Remove the spark plug and connect to the ignition coil.

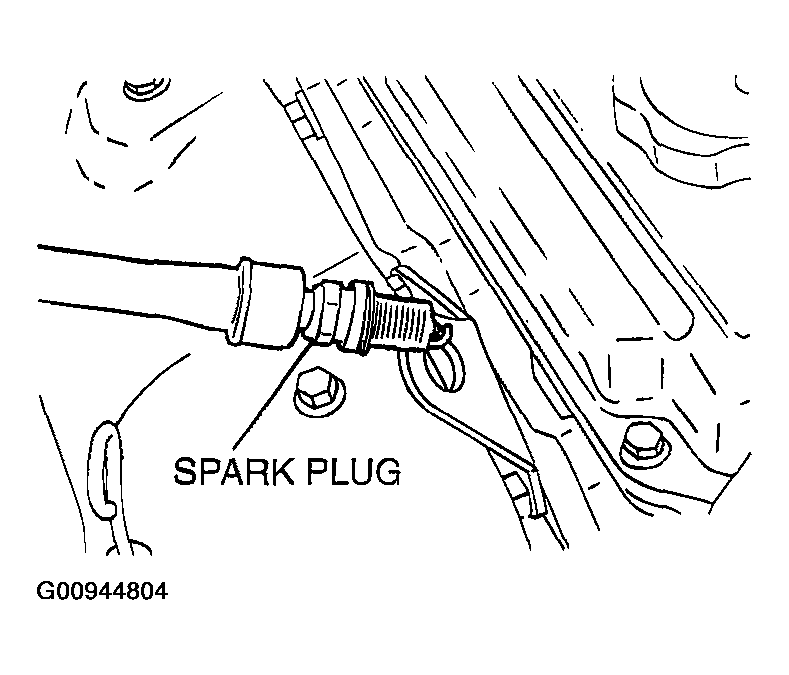

   Fig 1: Removing Spark Plug

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Ground the spark plug outer electrode (body), and crank the engine.

Check that there is an electrical discharge between the electrodes at this time.

Fig 2: Checking Electrical Discharge Between Electrodes

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
