Component Testing: Stator

  1. Check the continuity between the coil lead. If there is no continuity, replace the stator. See Fig 1 .
  2. Check the continuity between the coil and the core. If there is continuity replace the stator. See Fig 1 .

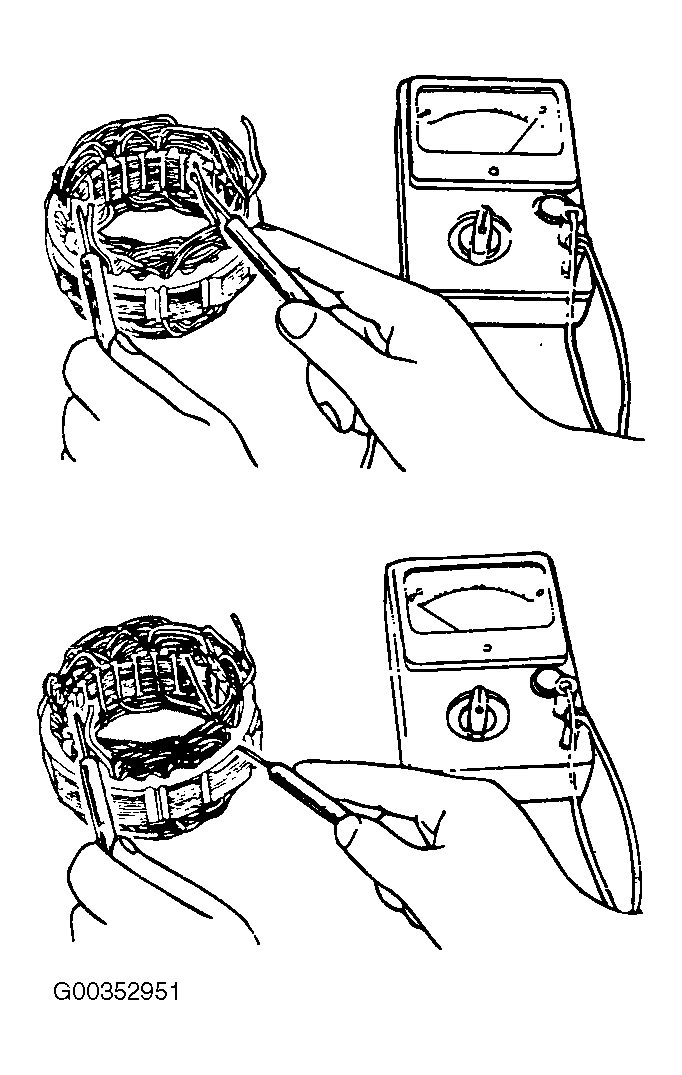

Fig 1: Testing Stator
G00352951Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
