Measurement Method

Connect the oscilloscope special patterns pick-up to the generator B terminal. See Fig 1 .

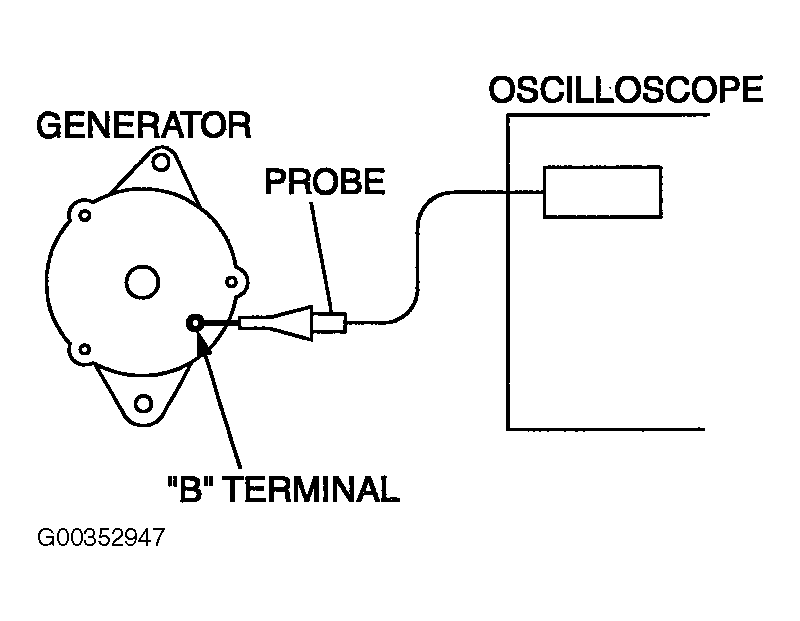

Fig 1: Connecting Oscilloscope
G00352947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
