Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Engine Compartment Relay Box | On left side of engine compartment. |

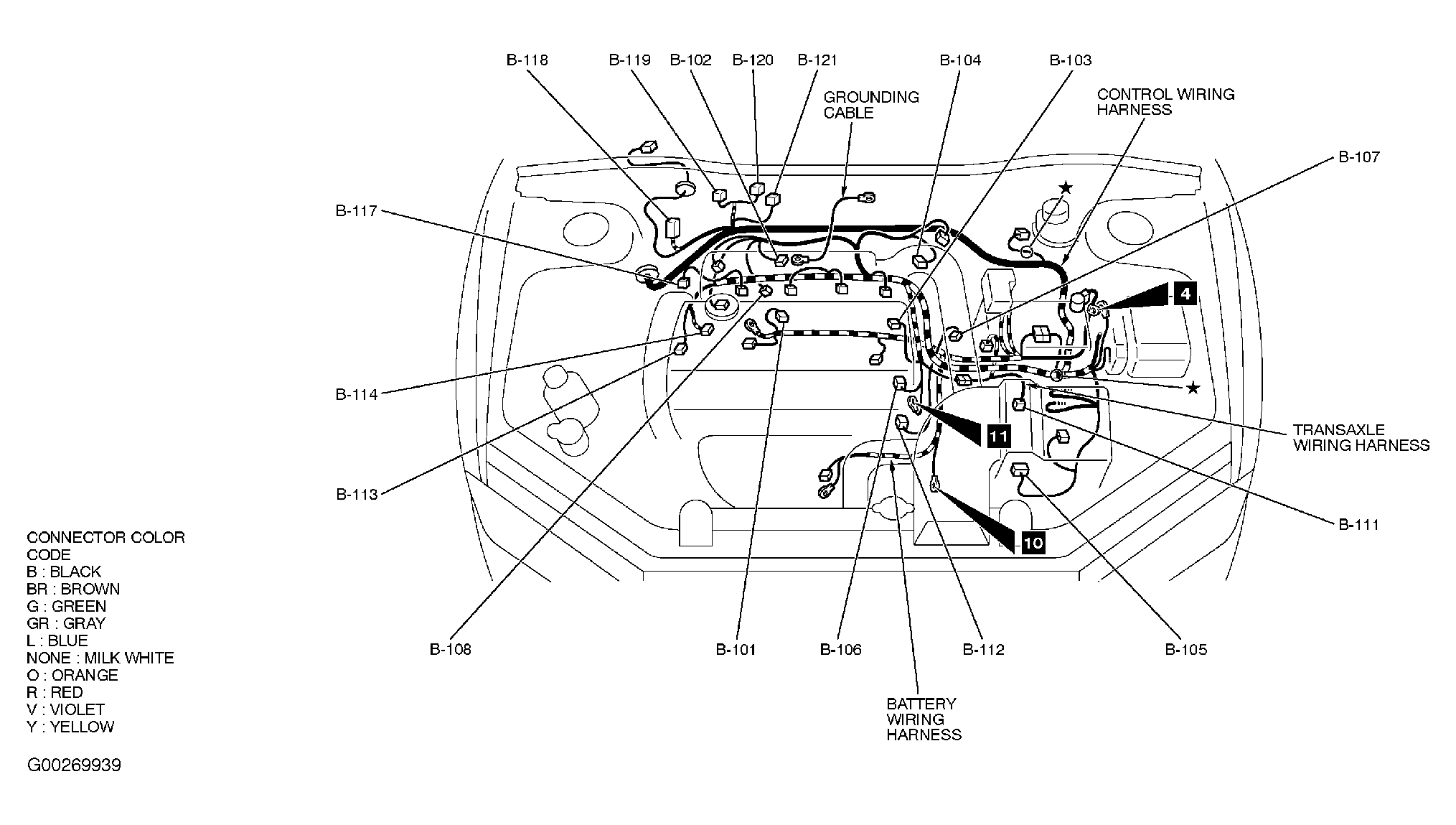

| Fuel Pump Resistor (B-121) | Right rear of engine compartment. See Figure . |

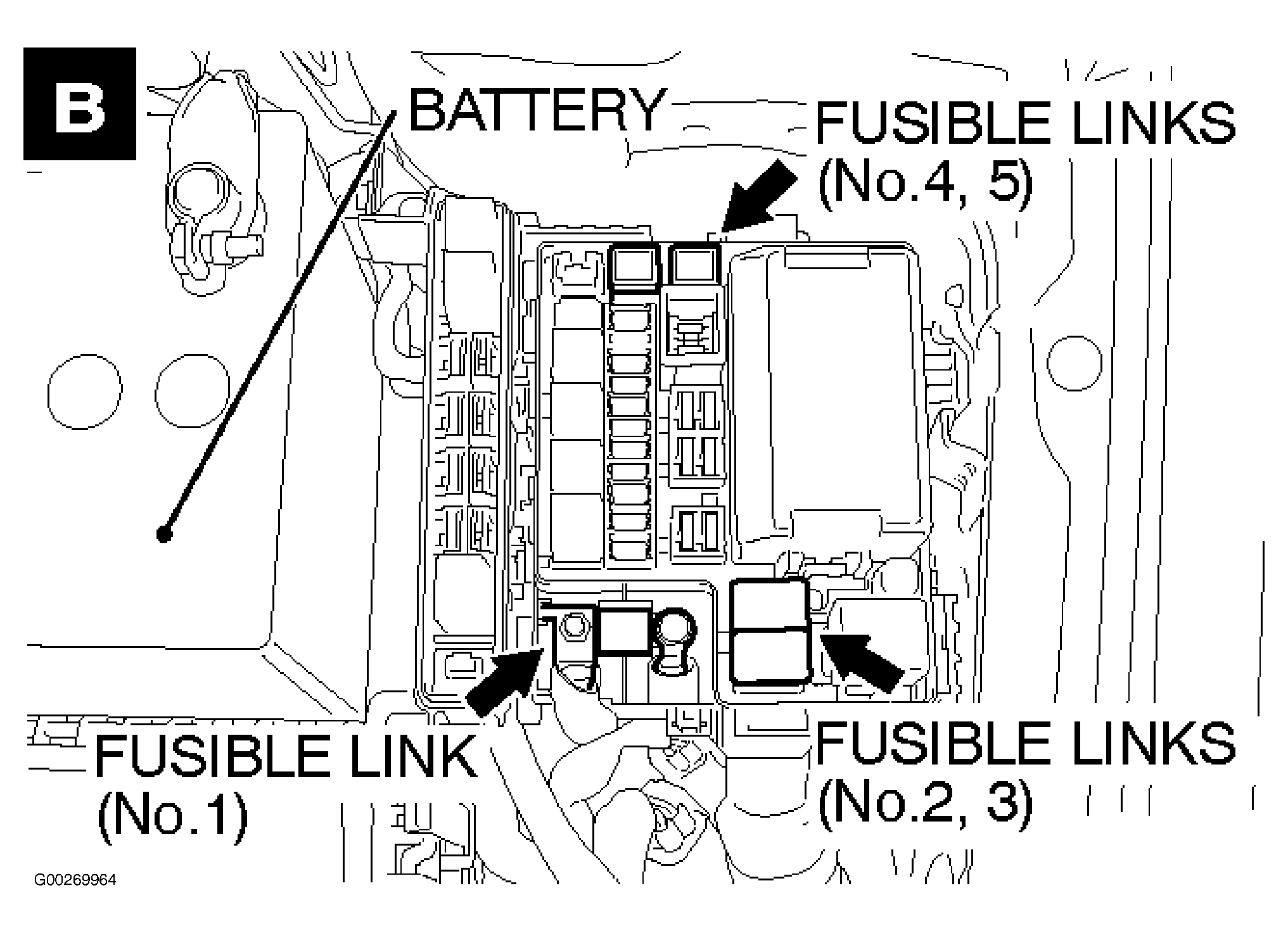

| Fusible Link No. 1, 2, 3, 4 & 5 | In engine compartment relay box. See Figure . |

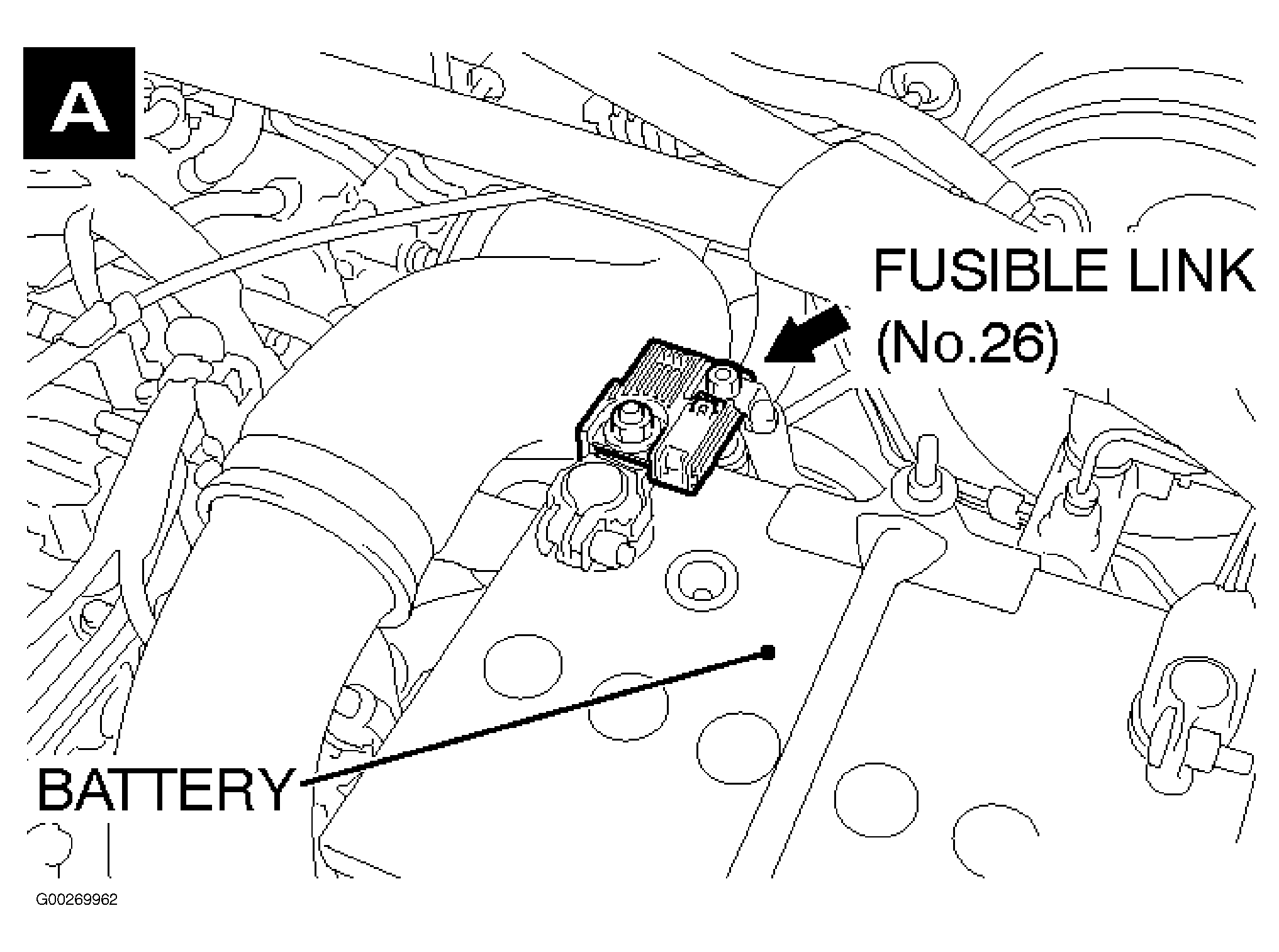

| Fusible Link No. 26 | On positive battery terminal. See Figure . |
| Injector Resistor (B-119) | At right rear of engine compartment. See Figure . |

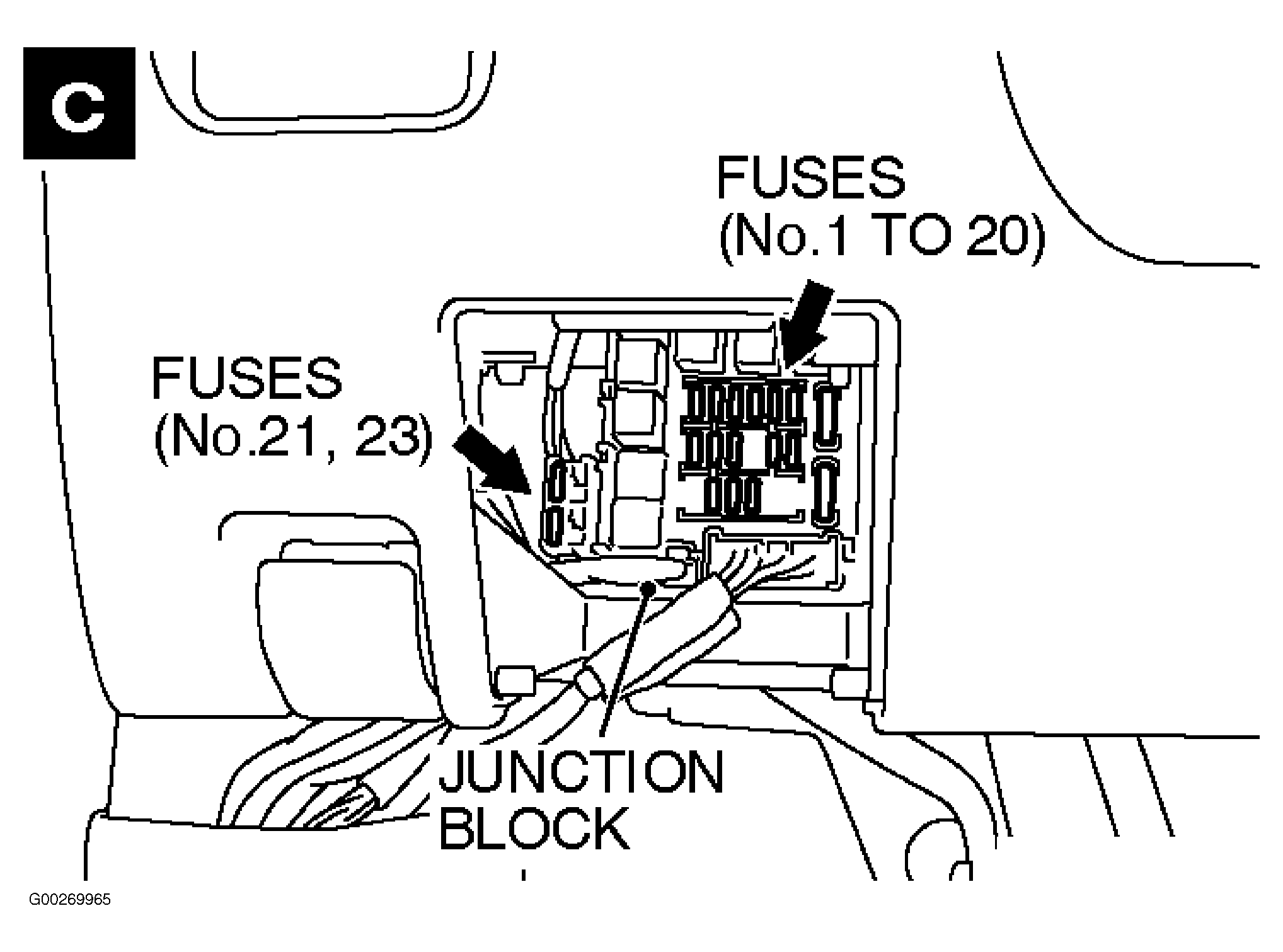

| Junction Block | Behind left end of dash. See Figure . |
