Removal And Installation: Notes

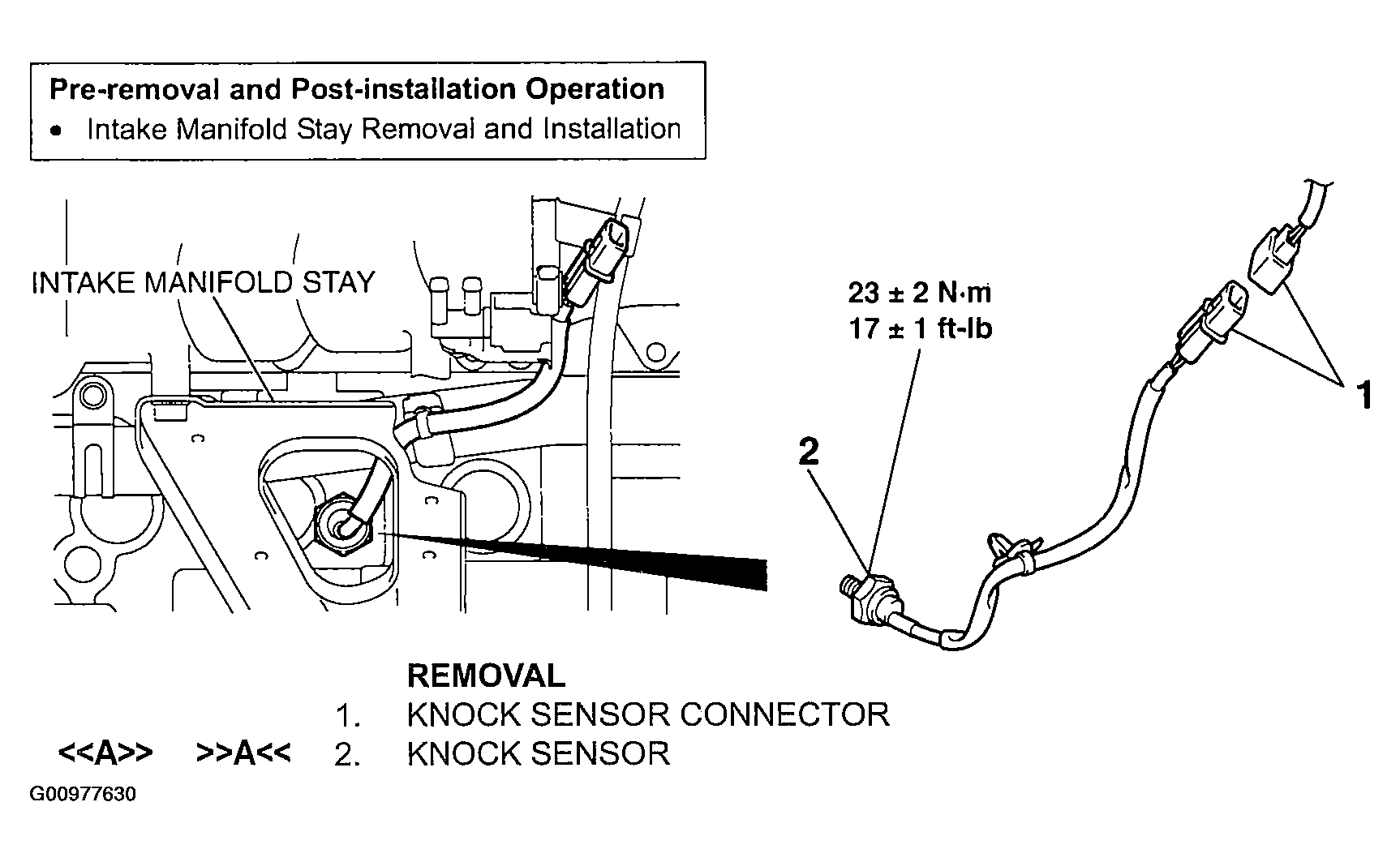

Fig 1: Removing Knock Sensor
G00977630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
