Primary Coil And Ignition Power Transistor Continuity Check

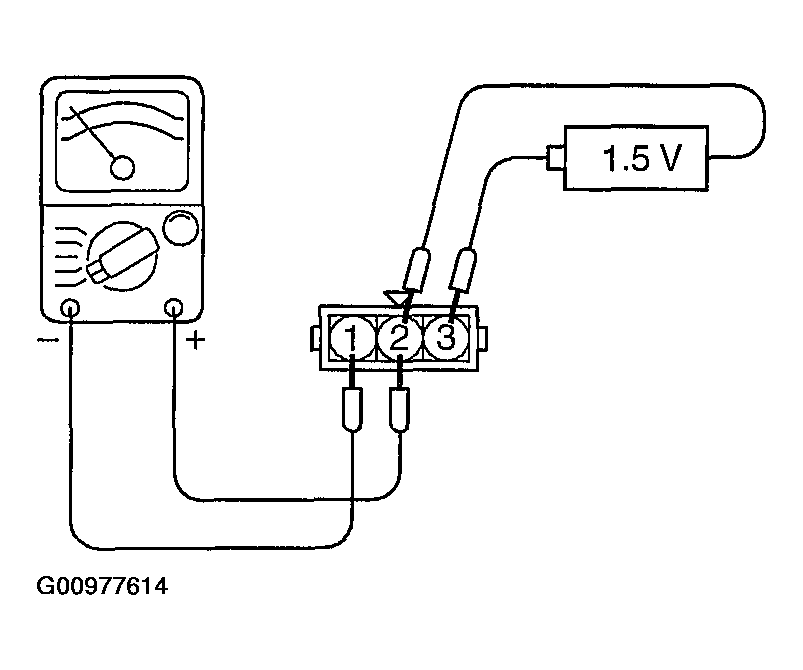

Fig 1: Measuring Primary Coil And Ignition Power Transistor Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: An analog-type ohmmeter should be used.

NOTE: Connect the negative probe of the ohmmeter to terminal No. 1.

CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent coil from burning and ignition power transistor from breaking.

1. Connect and disconnect 1.5 V battery between terminals No. 2 and No. 3, and observe the ohmmeter whether there is continuity or not.
2. If results do not agree with the figure Fig 2 below, replace the primary coil and ignition power transistor assembly.

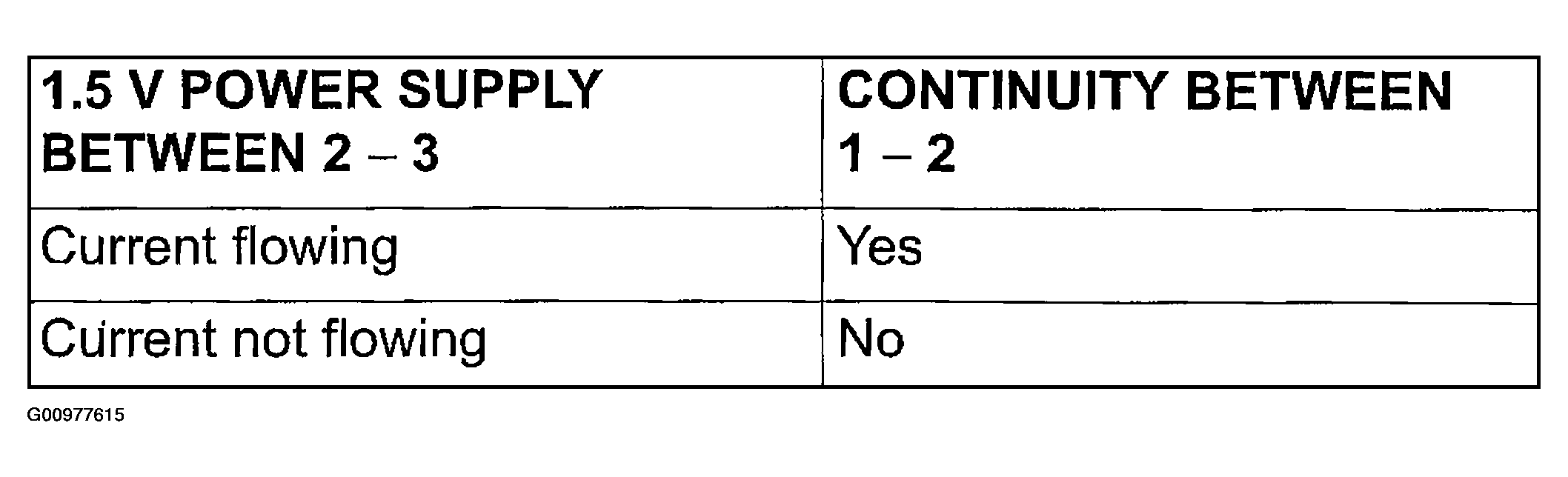

   Fig 2: Identifying Primary Coil And Ignition Power Transistor Continuity

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
