Emission Control: Diagnosis

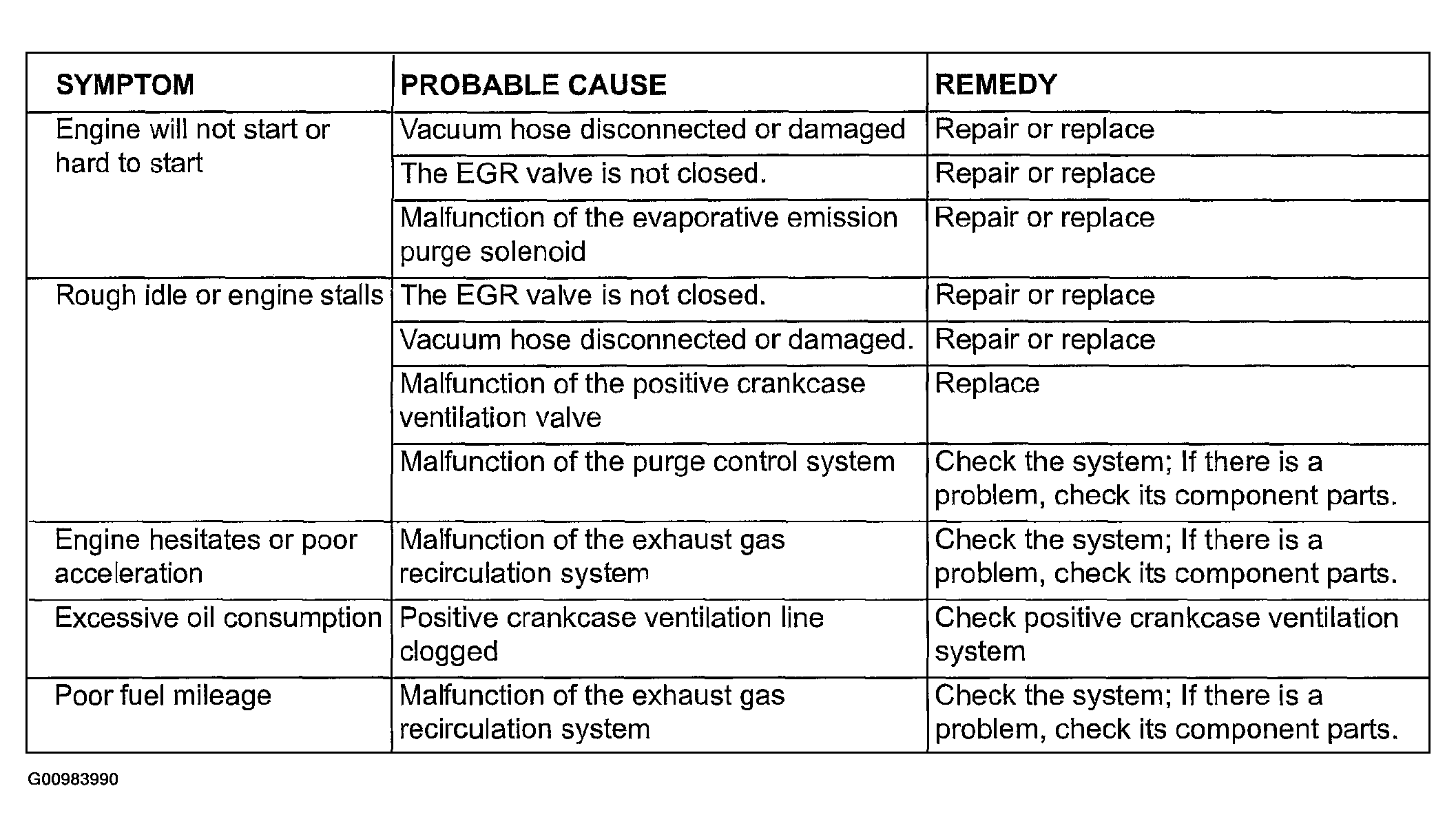

Fig 1: Identifying Emission Control Diagnosis Chart

G00983990

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
