Check Valve Check

Connect a hand vacuum pump to the check valve, apply negative pressure and check the airtightness.

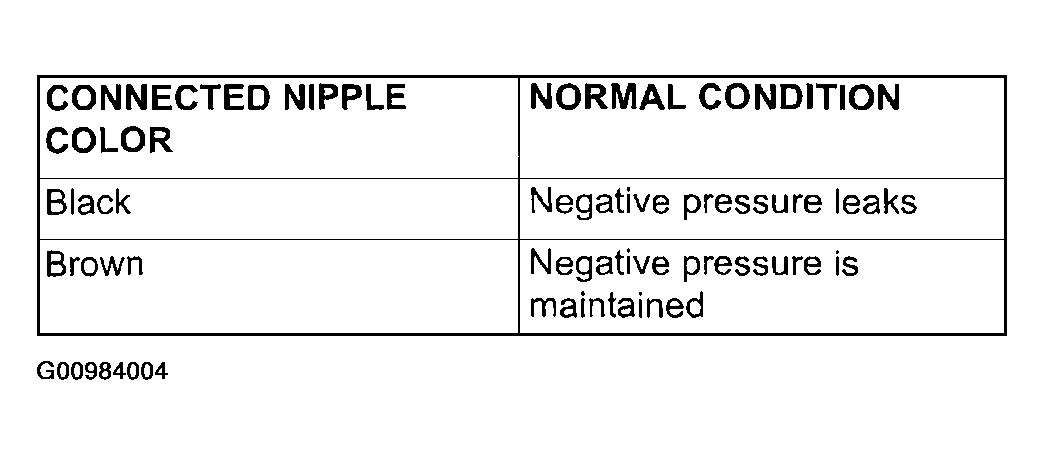

Fig 1: Identifying Check Valve Conditions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

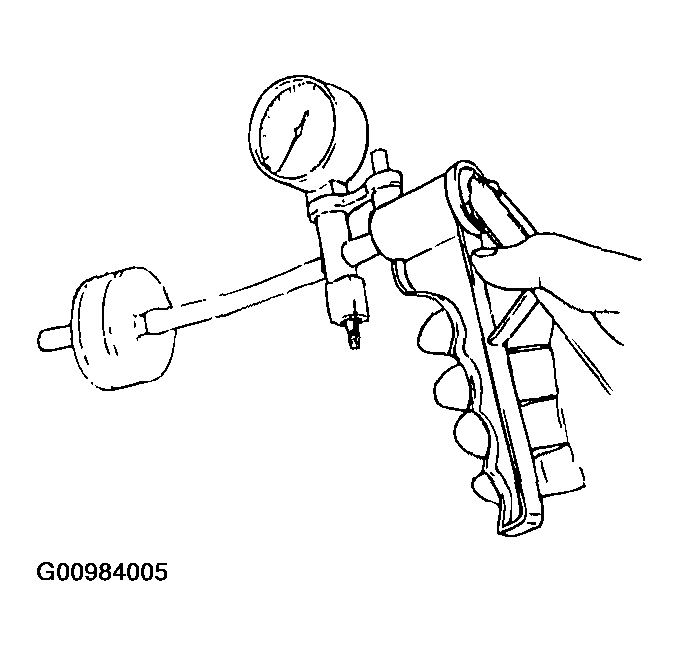

Fig 2: Connecting Hand Vacuum Pump To Check Valve

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
