Removal And Installation: Notes

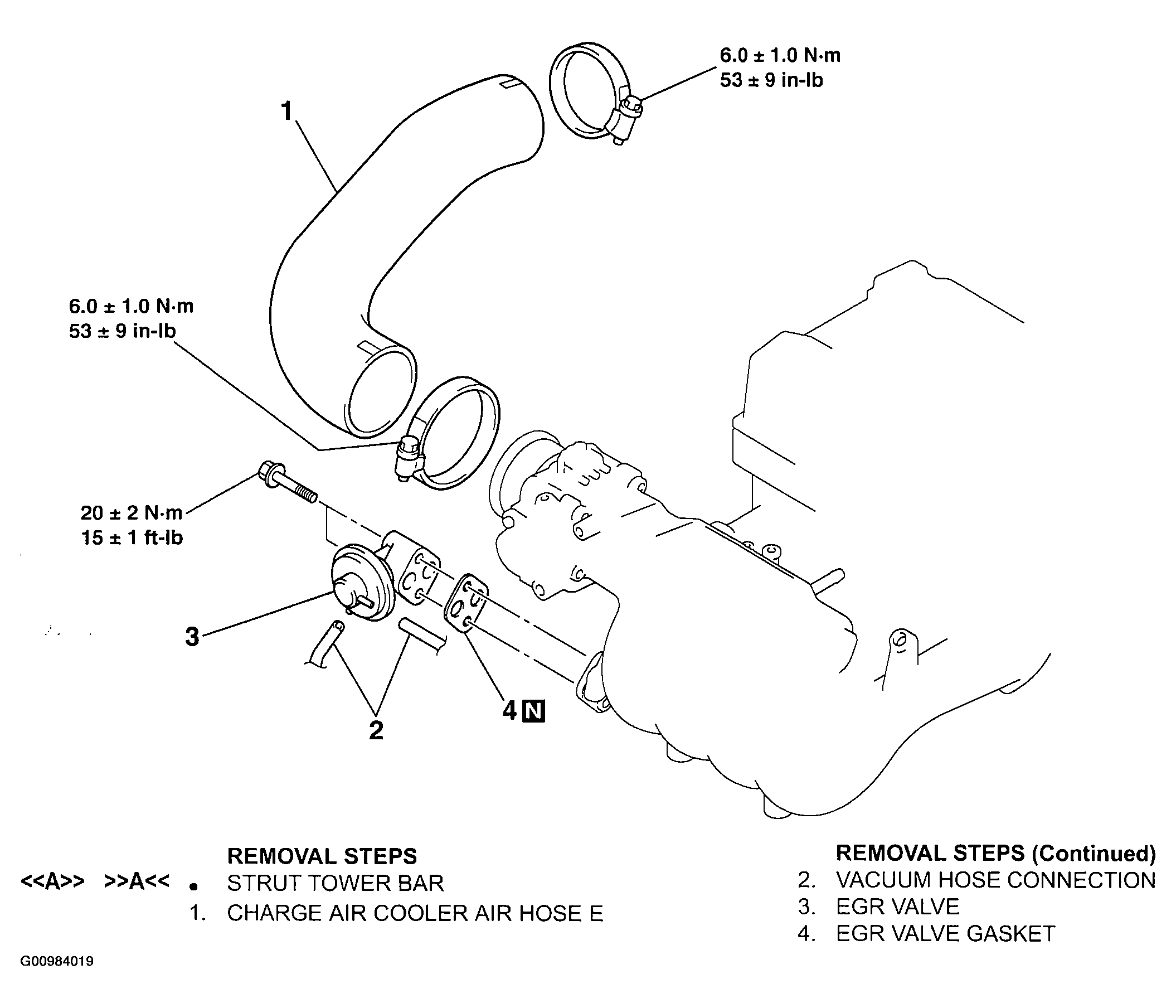

Fig 1: Removing EGR Valve
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
