Vacuum Hose Check

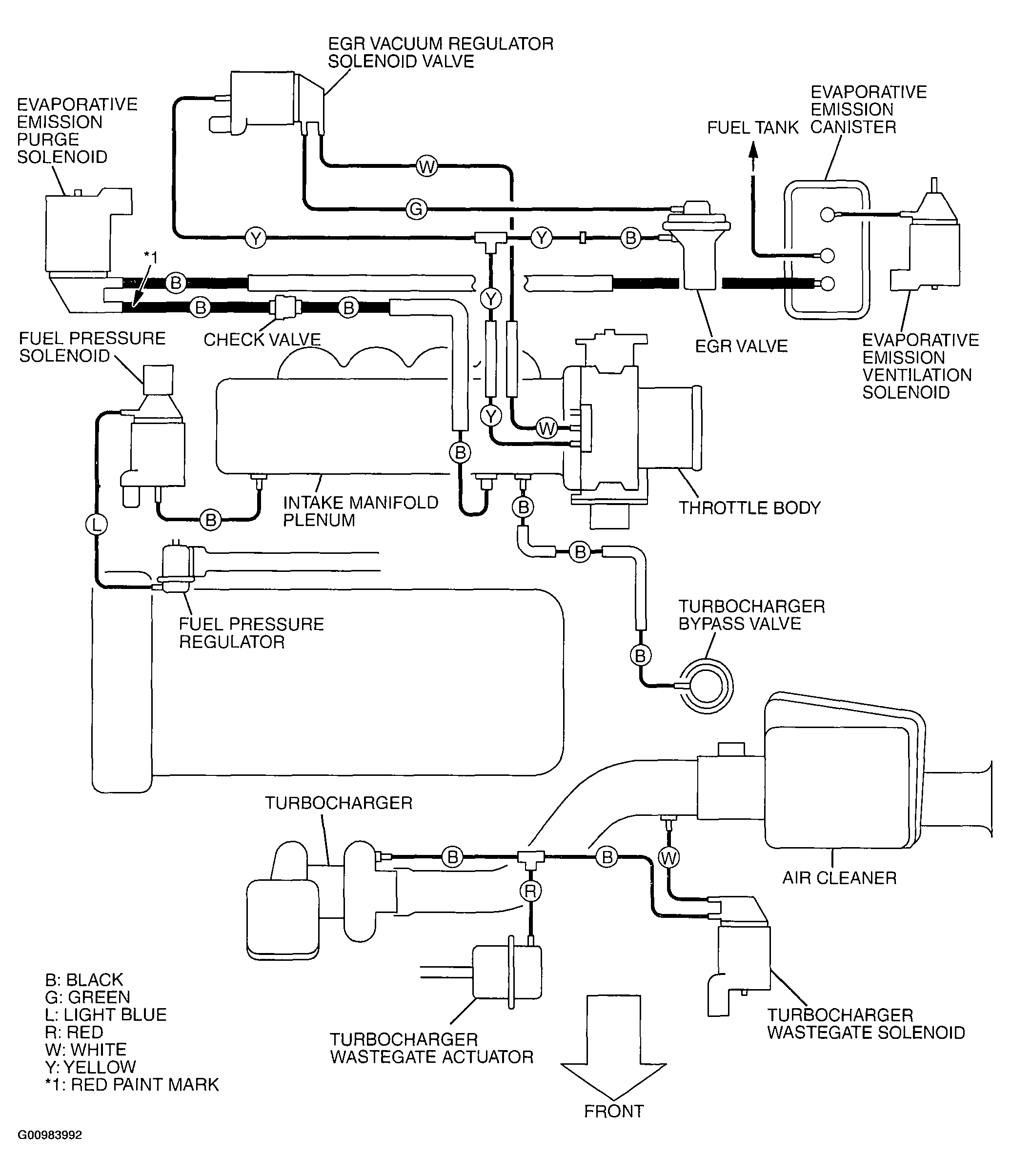

  1. Using Figure as a guide, check that the vacuum hoses are correctly connected.
  2. Check the connection of the vacuum hoses, (removed, loose, etc.) and confirm that there are no sharp bends or damage.
