Removal And Installation: Notes

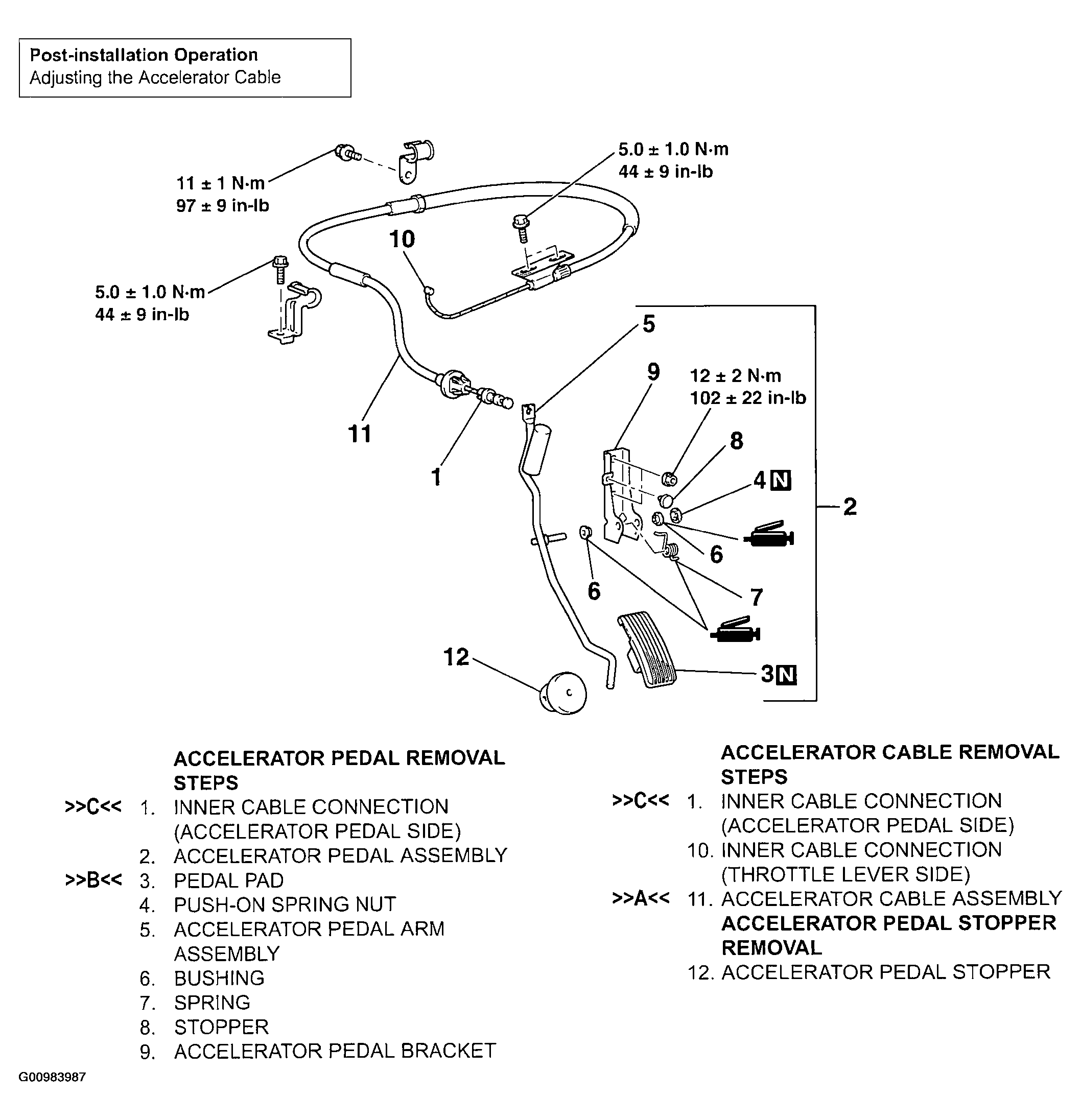

Fig 1: Identifying Accelerator Cable And Pedal Components
G00983987Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
