Fuel Pump Module Disassembly And Assembly
>>
< Fuel Pump Module >
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
< Fuel Pump Module >

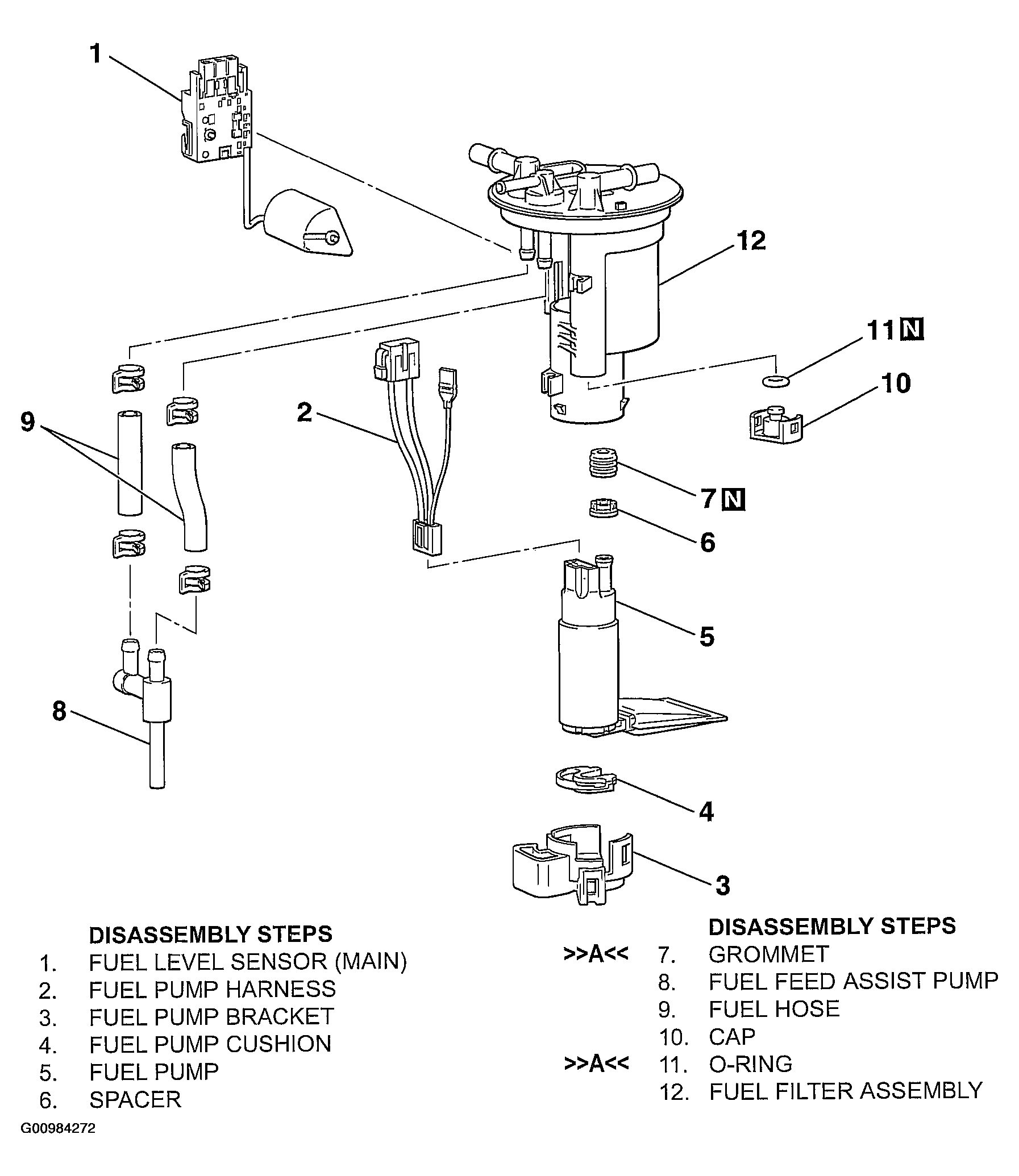

Fig 1: Exploded View Of Fuel Pump Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
