Removal And Installation: Notes

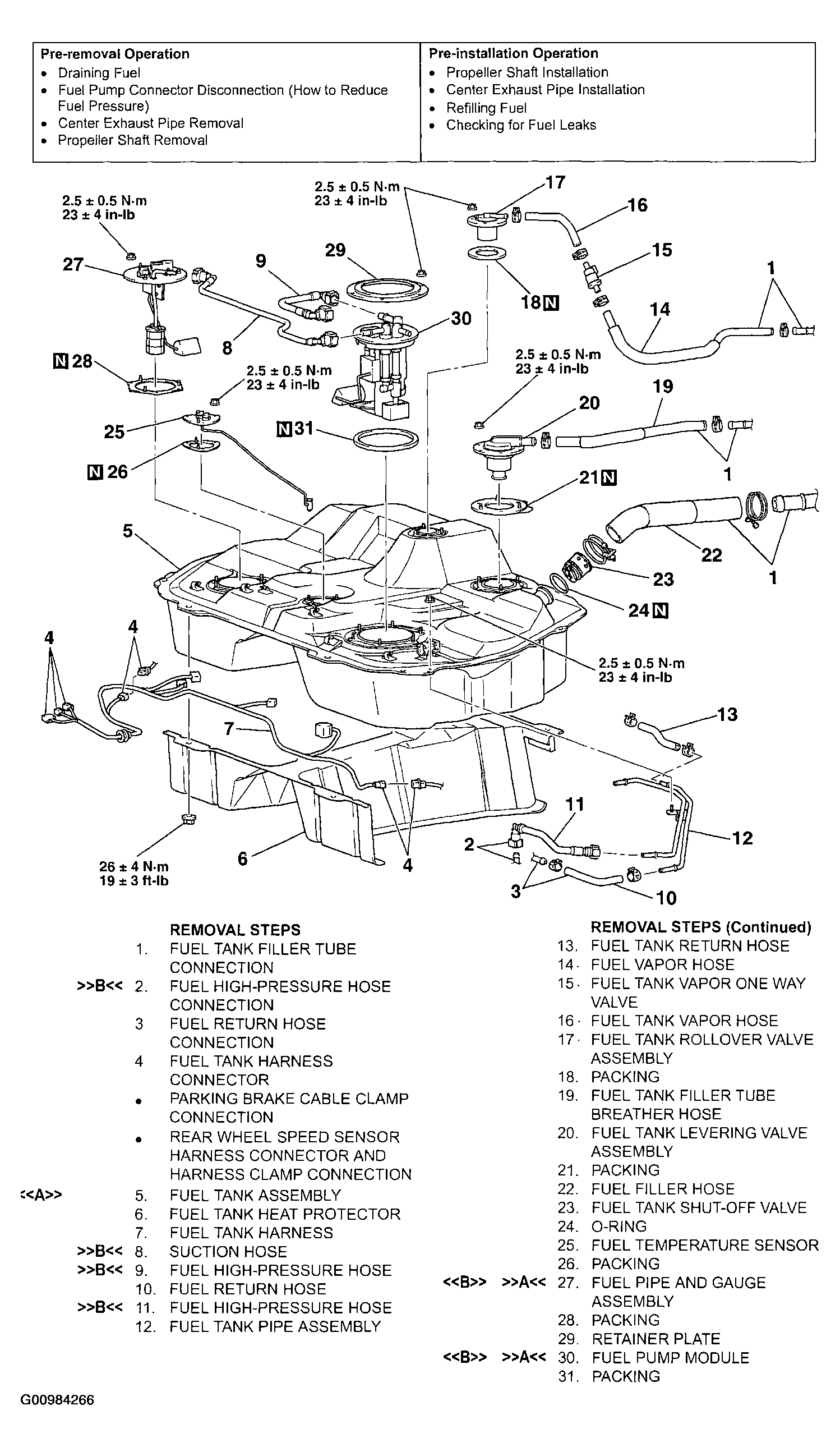

Fig 1: Removing Fuel Tank (1 Of 2)
G00984266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

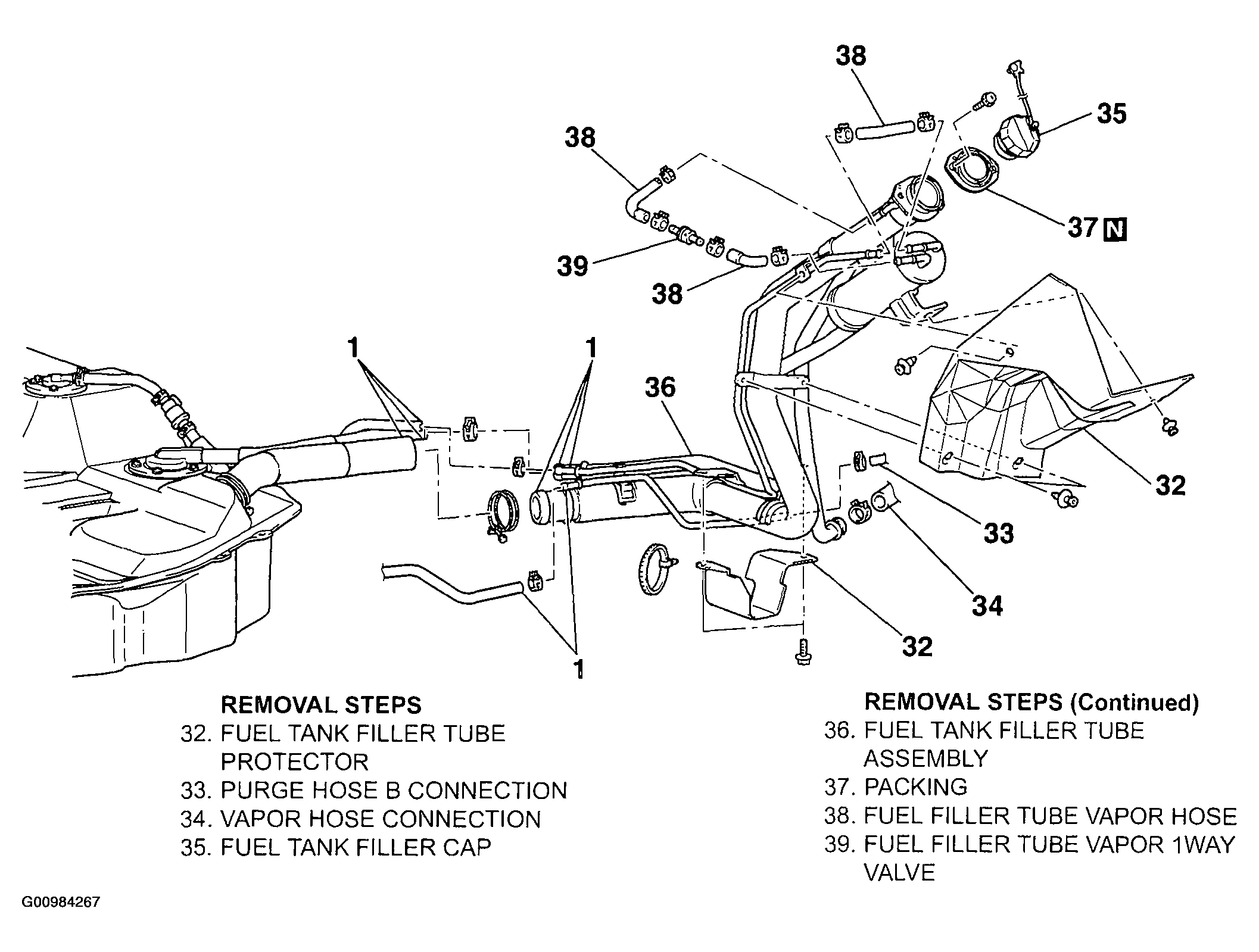

Fig 2: Removing Fuel Tank (2 Of 2)
G00984267Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
