Fastener Tightening Specifications

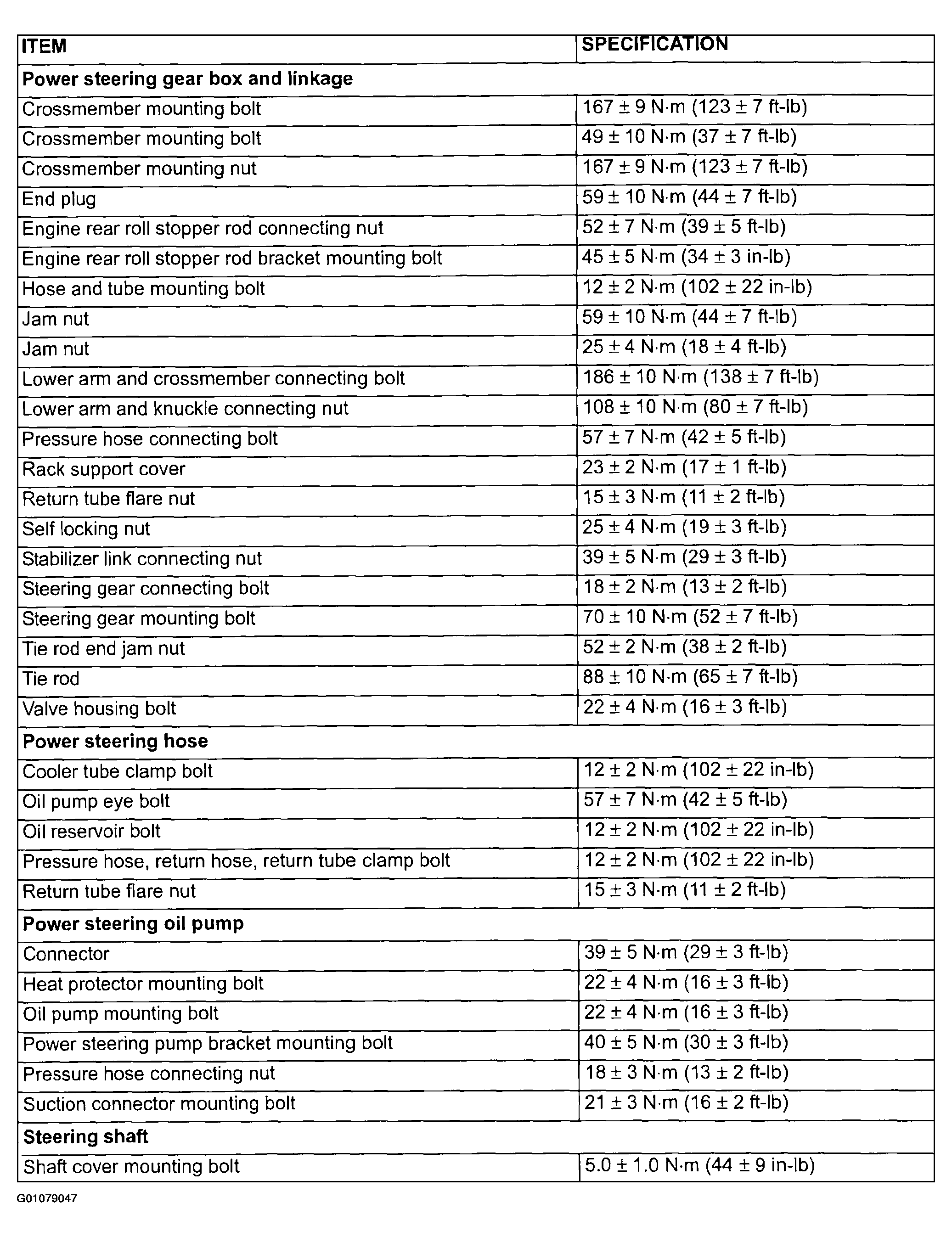

Fig 1: Fastener Fastener Tightening Torque Specifications Table Table Table (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

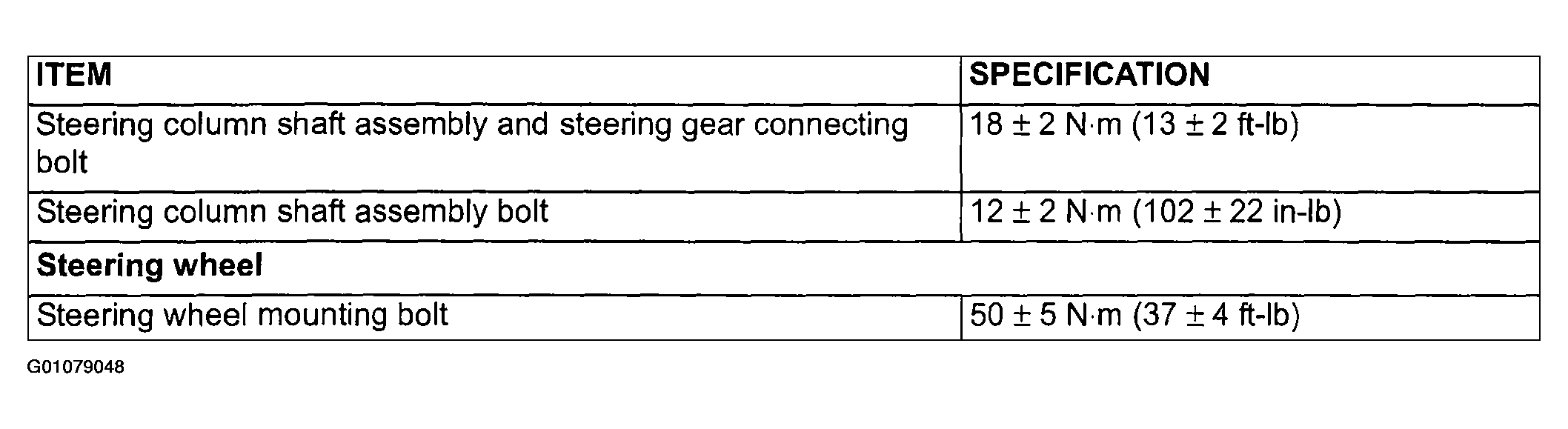

Fig 2: Fastener Fastener Tightening Torque Specifications Table Table Table (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
