Special Tool

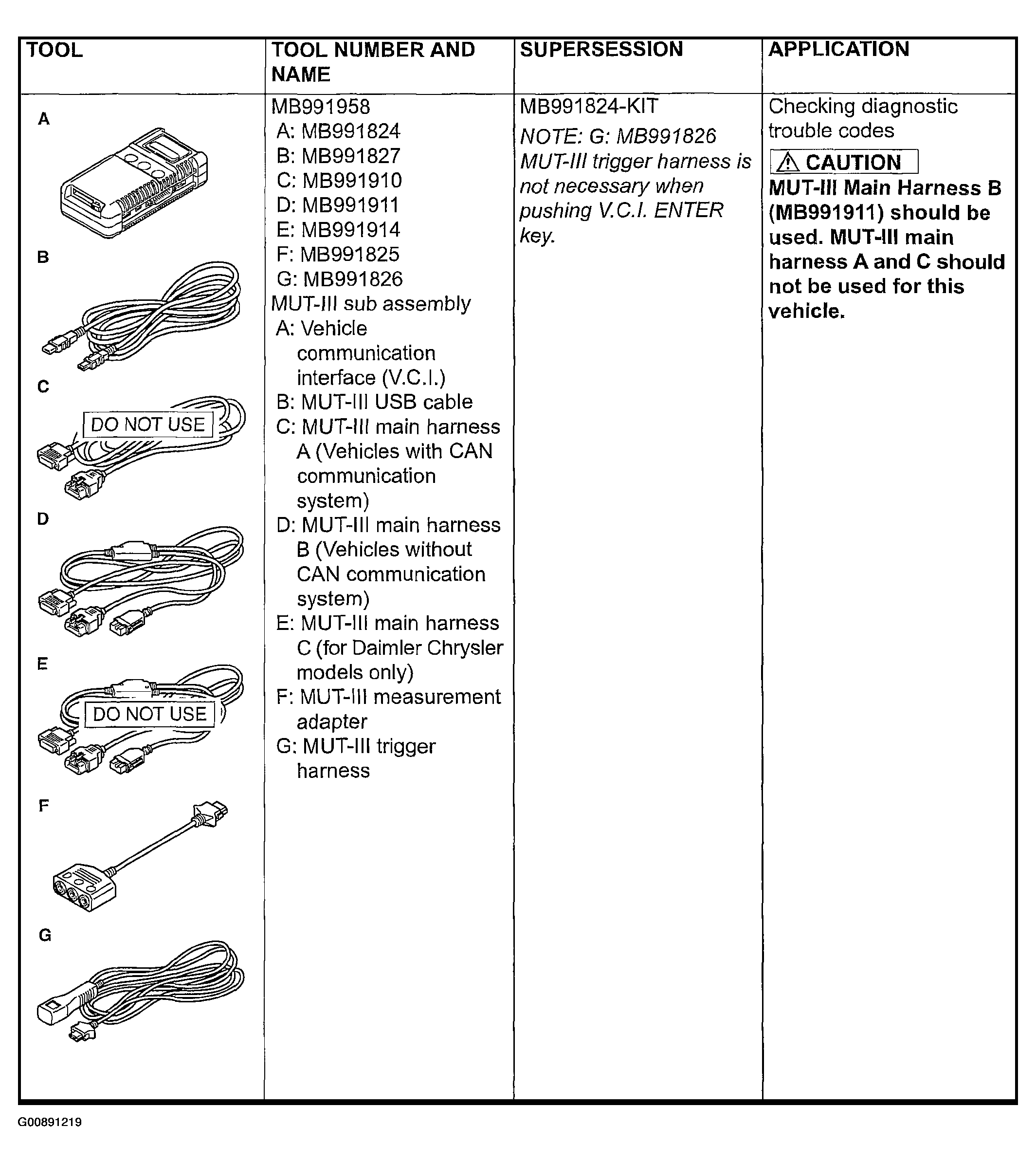

Fig 1: Identifying Special Tool (1 Of 2)
G00891219Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

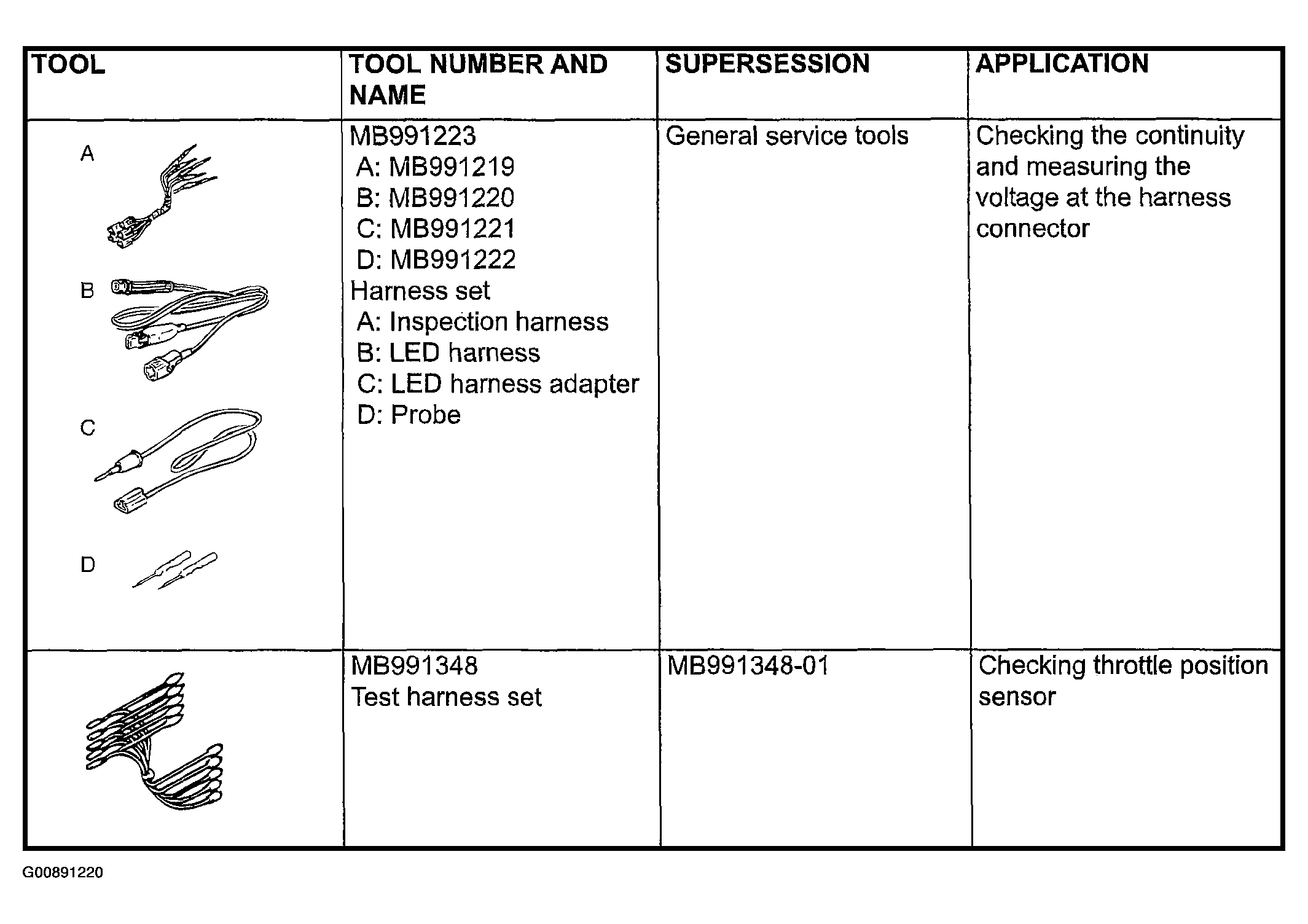

Fig 2: Identifying Special Tool (1 Of 2)
G00891220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
