Removal And Installation

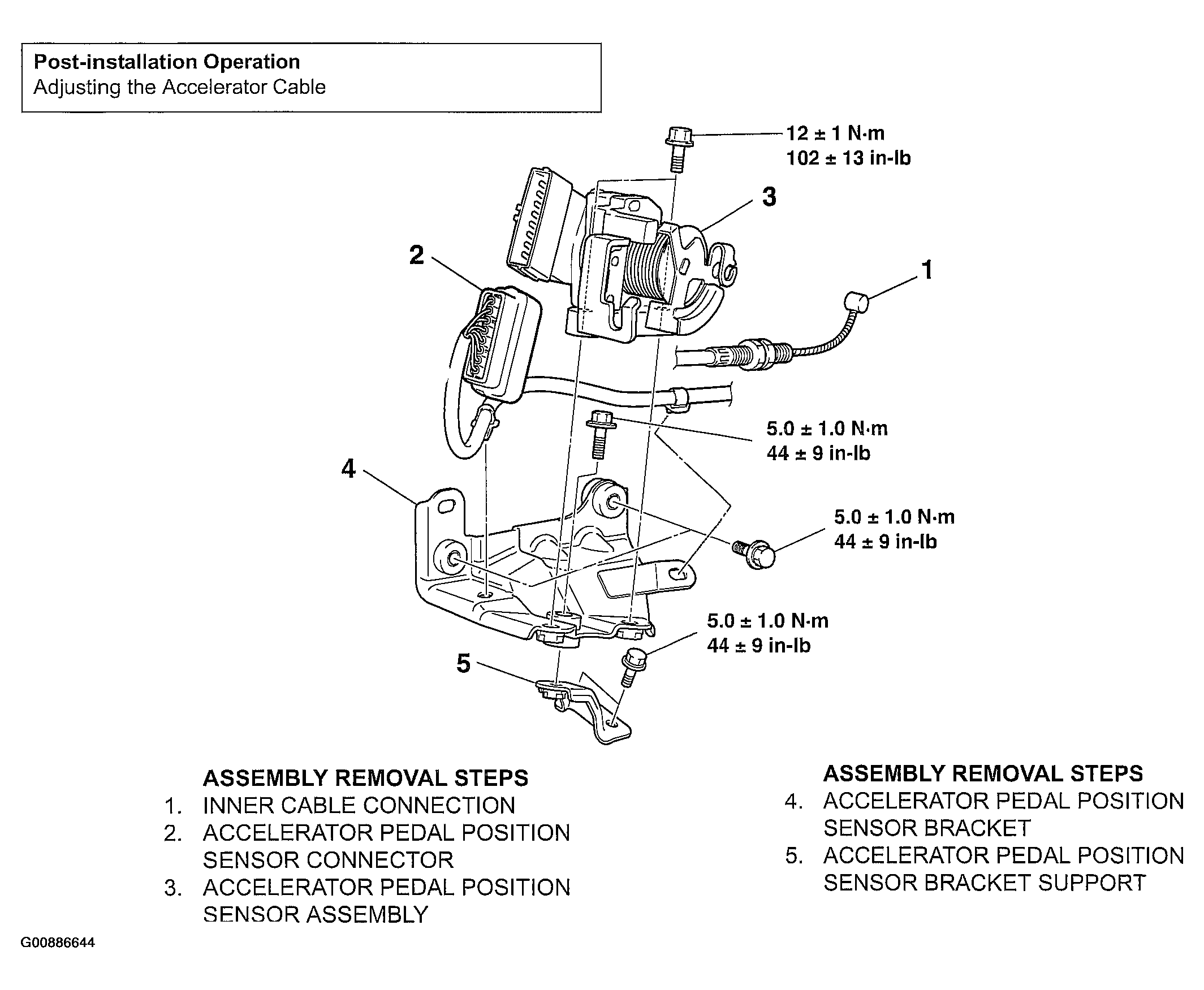

Fig 1: Removing Accelerator Pedal Position Sensor Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
