Front Seatback Assembly With Side-Airbag Module Check

DANGER

Never attempt to measure the circuit resistance of the air bag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result in serious personal injury.

WARNING: If any improper part is found during the following inspection, replace the front seatback assembly with a new one. Dispose of the old one according to the specified procedure (Refer to AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES  .)
  1. Check the air bag module deployment section for dents or deformation.
  2. Check the connector for damage, the terminals for deformation, and the harness for binds.

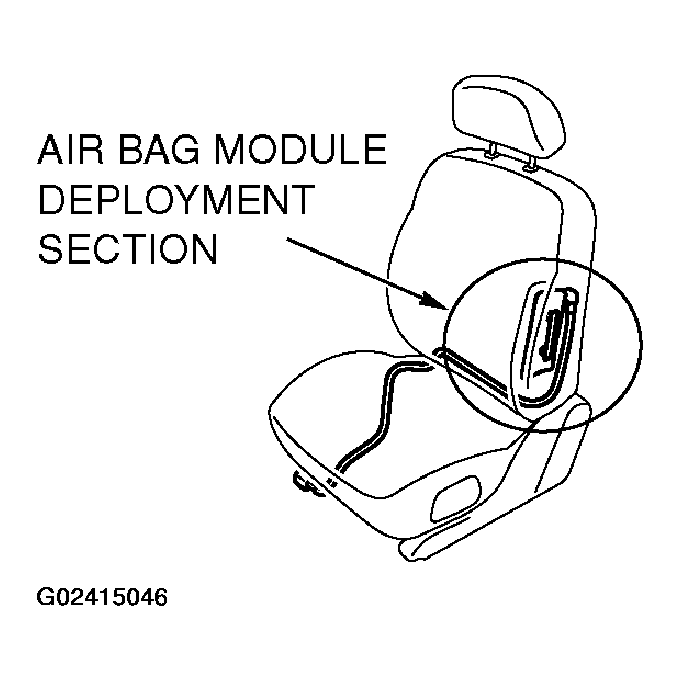

    Fig 1: Checking Air Bag Module Deployment Section
    G02415046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
