Removal And Installation: Notes

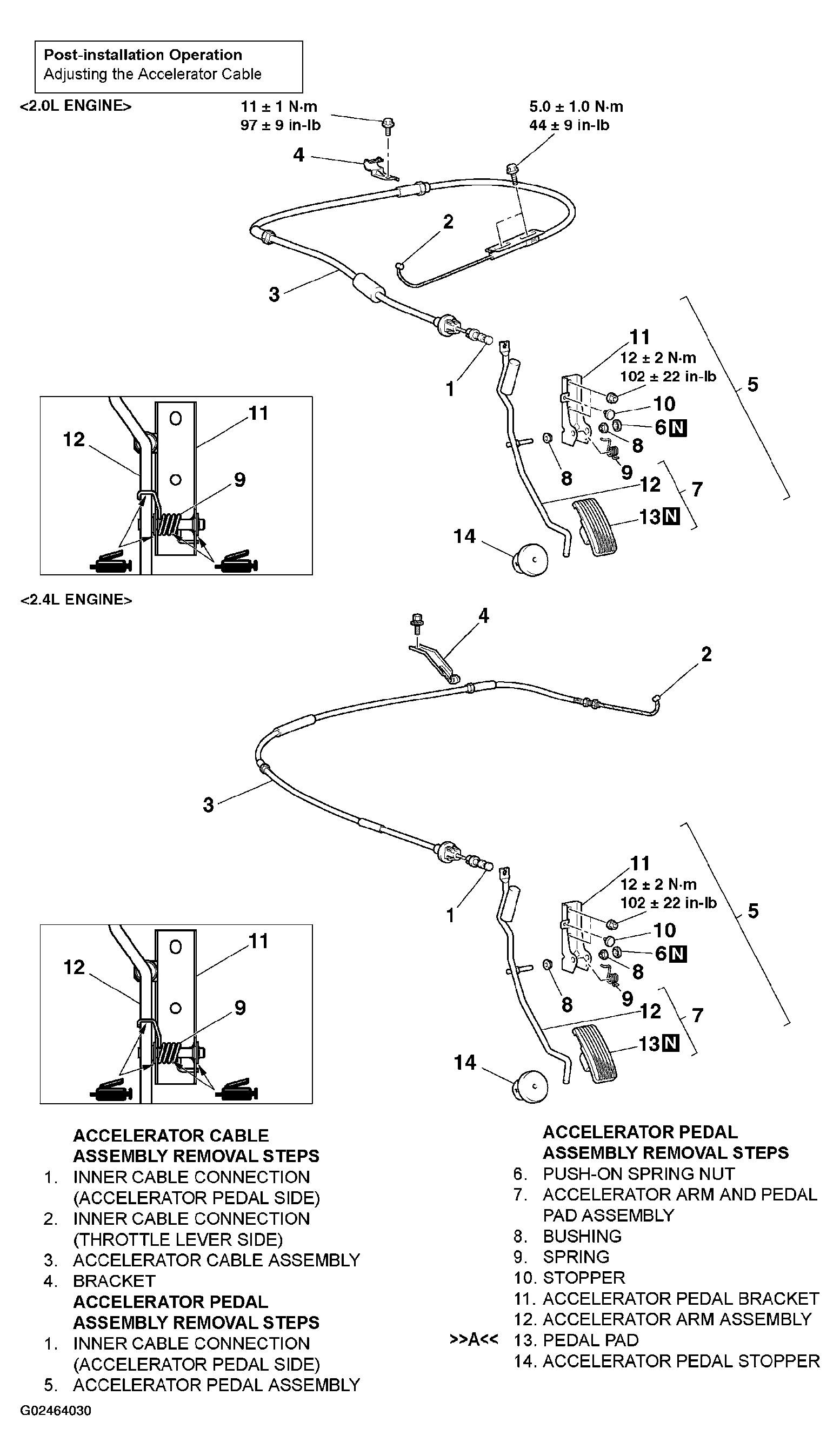

Fig 1: Exploded View Of Accelerator Cable And Pedal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
