Vacuum Hose Routing

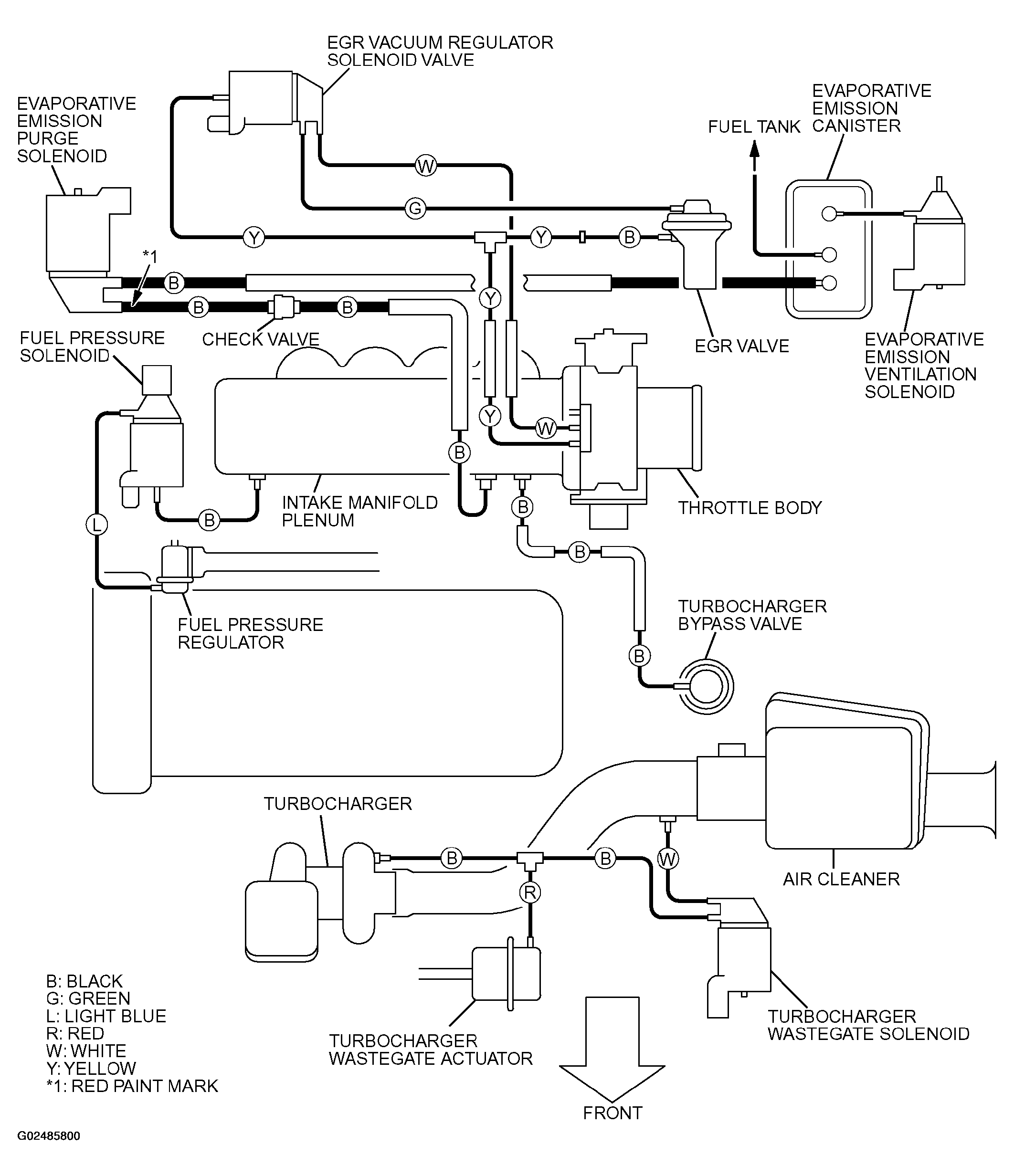

Fig 1: Identifying Vacuum Hose Routing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
