Disassembly And Assembly: Notes

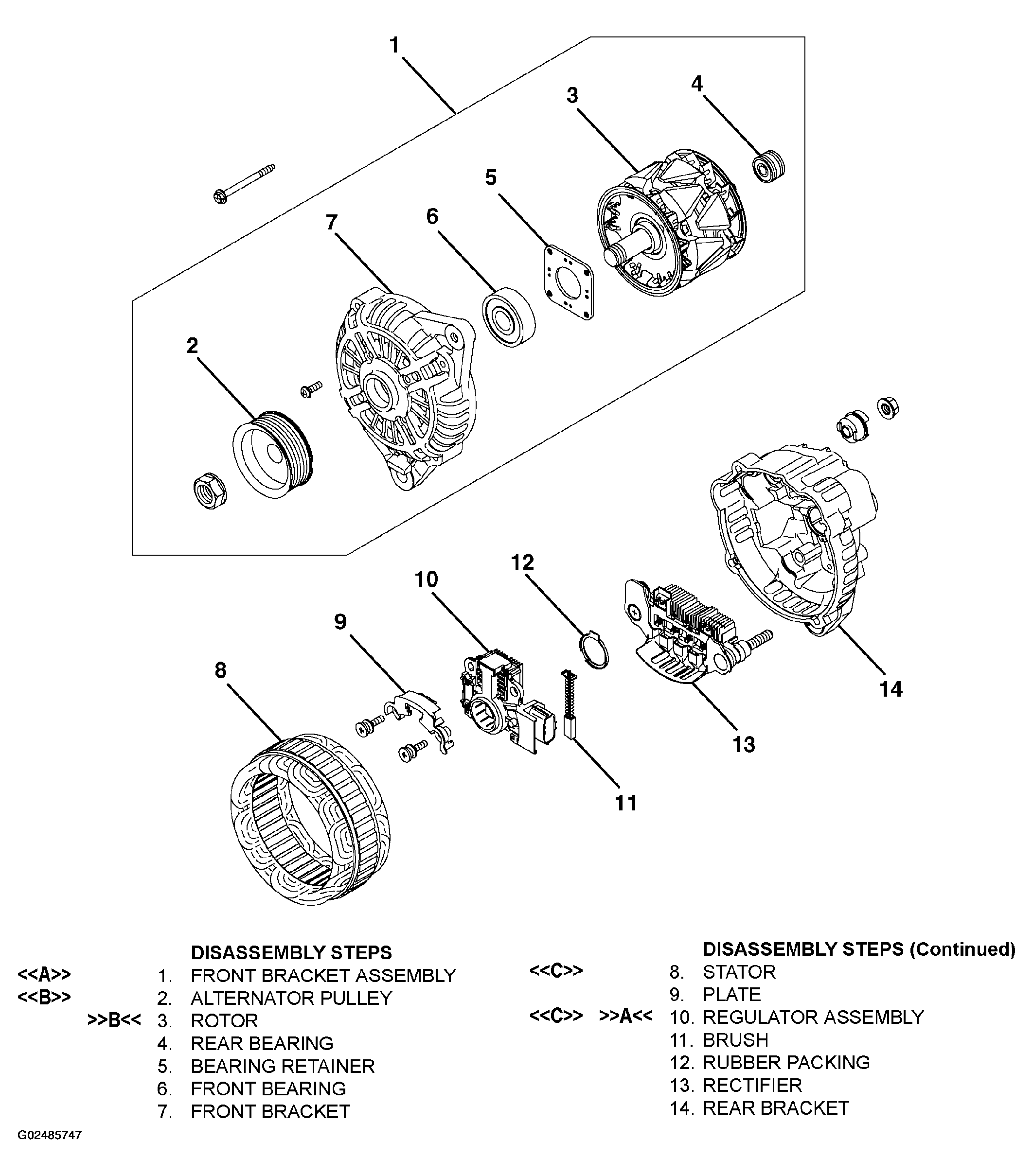

Fig 1: Disassembling Generator Removal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
