Removal And Installation: Notes

CAUTION: If the vehicle is equipped with the Brembo(tm) disc brake, during maintenance, take care not to contact the caliper with tool or parts, because the caliper paint will be scratched.

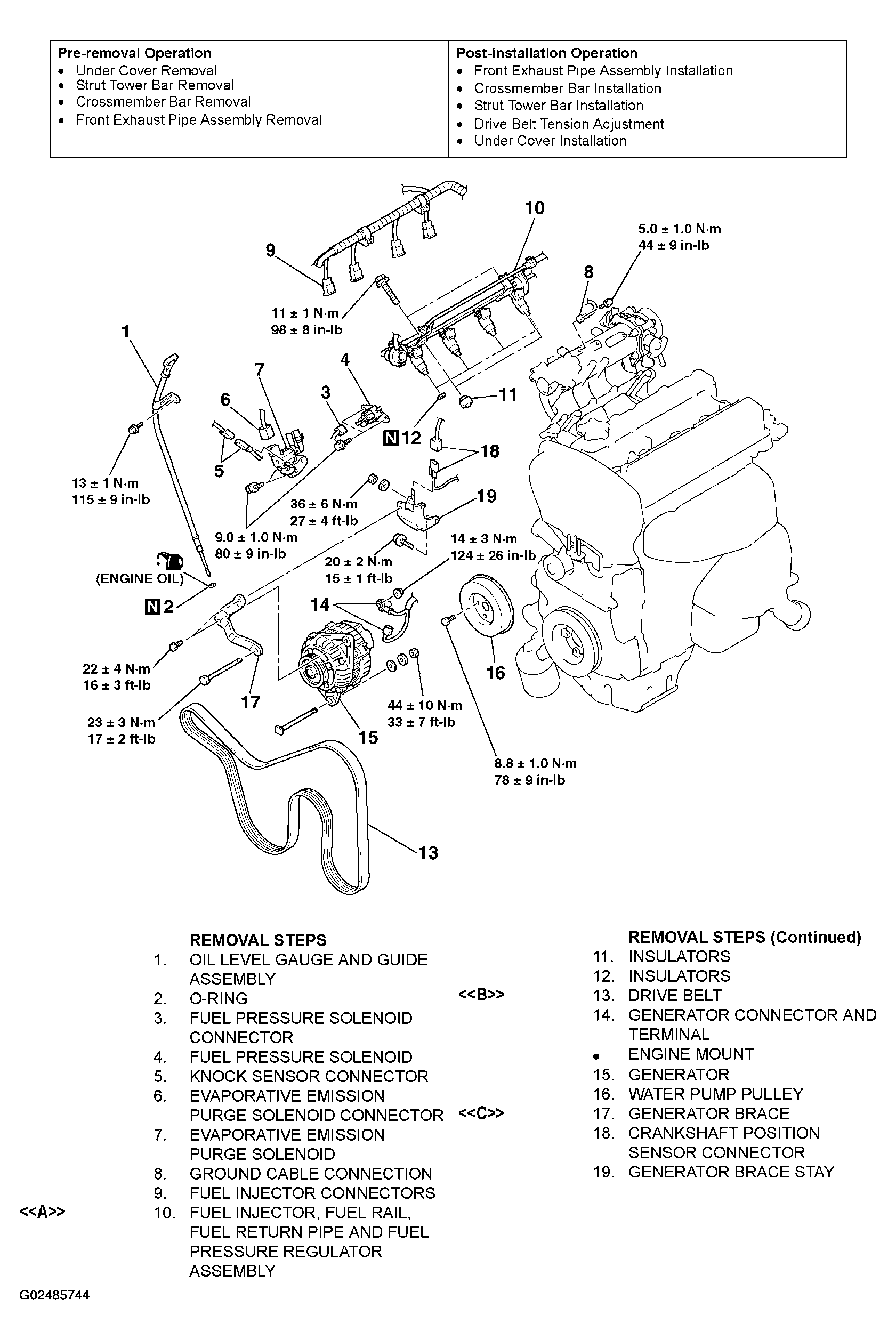

Fig 1: Exploded View Of Generator Assembly
G02485744Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
